High Precision PCB Router Machine for Straight Line Arc and Circular Boards

High Speed Curve PCB Cutting Machine SMT Cutter For PCB Production Line
Machine introduction

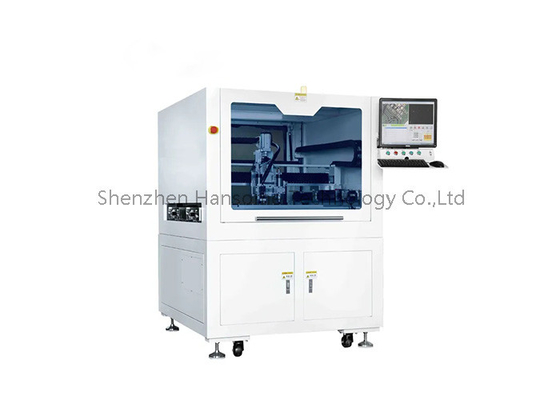

Introducing the RM-F550, a cutting-edge Router Machine designed for precision depaneling of printed circuit board assemblies (PCBA) into individual boards. This innovative machine boasts a robust and stable platform, ensuring unparalleled working precision, with a standard working platform size of 300*350mm.

For larger projects, an optional 400*600mm platform is available. The RM-F550 offers user-friendly "visual" programming, facilitating rapid and accurate online setup, while also providing real-time monitoring of the depaneling process.

Main features

1, Provide customers a high performance,high stable and security industrial equipment, using high precision linear guide, control card, and servo motor.

2, 4 axis motion control basen on the high resolution CCD vicual aligement, use double platform to make the production more efficiency.
3, Germany brand routing spindle, speed at 40000~60000rpm.
4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.

5, Tool life monitoring. After the cutter cuts a certain distance, it will automatically rise and fall to the position of another uncut blade.
6, Suitable for depaneling straight line, arc, and circular connectted boards.

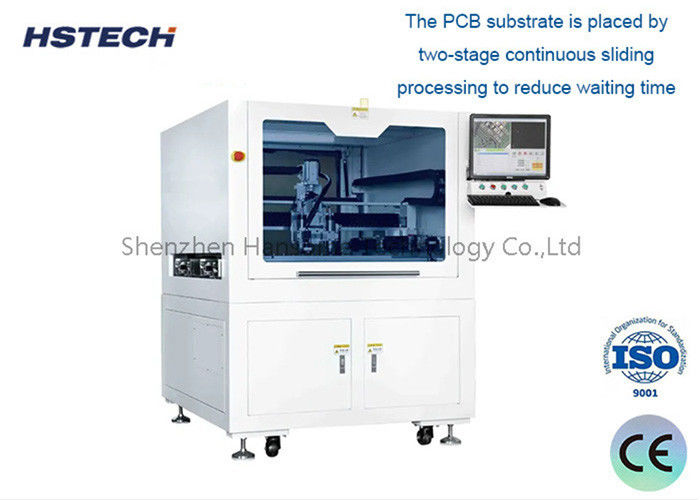

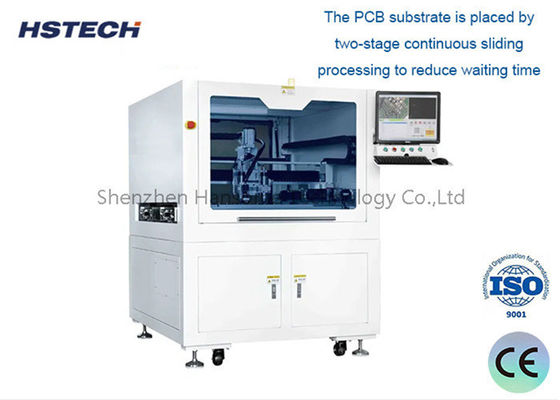

7, The PCB substrate is placed by two-stage continuous sliding processing to reduce waiting time and increase production.

Sepcfication


About Packaging




We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.
At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
