High Precision PCB Depaneling Equipment with Adjustable Cutting Depth and Mobile Blade Mechanism

High Precision PCB Depaneling Equipment with Adjustable Cutting Depth and Mobile Blade Mechanism

Brand Name:	HSTECH
Model Number:	HS-300
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Blade Miving PCB Separator

Other Name:

V-cut PCB Cutter Machine

Condition:

New

Quality:

Durable,high Rank

Warranty:

1 Year

Usage:

PCB Board,aluminum Board,Cut V-cut Pcb

Packaging Details:

Wooden Case

Supply Ability:

200 sets per month

Highlight:

Adjustable Cutting Depth PCB Depaneling Equipment

High Precision PCB Depaneling Equipment

PCB Depaneling Equipment

Product Description

High Precision PCB Depaneling Equipment With Adjustable Cutting Depth

Advanced PCB Separation Technology

This specialized Blade Moving PCB Separator is engineered for precise cutting and efficient detachment of printed circuit boards. Featuring a unique mobile blade mechanism, this equipment ensures accurate and controlled separation of PCBs along predetermined segmentation lines.

Working Principle

The equipment utilizes mobile blades that traverse horizontally or vertically to meticulously cut through PCB surfaces along designated V-Cut lines. Powered by robust mechanical drives including pneumatic or electric push rods, the system delivers efficient and precise separation with ample cutting power.

Key Advantages

High-Precision Separation

Advanced blade movement technology ensures precise cutting along V-Cut lines while maintaining circuit board integrity.

High Efficiency Production

Rapid processing of multiple PCBs makes this equipment ideal for batch production environments.

User-Friendly Operation

Intuitive design and friendly interface accommodate users of all technical skill levels.

Fully Adjustable Parameters

Cutting depth and pressure adjustments adapt to PCBs of varying thicknesses and materials.

Comprehensive Safety

Integrated safety protection devices ensure operator safety during all operations.

Main Components

Mobile Blade Mechanism: High-speed steel blades with driving motors/cylinders
Precision Positioning System: Optical sensors for accurate PCB positioning and guidance
Automated Handling: Conveyor belts and robotic entry/exit systems
Program Control System: PLC or embedded controller for fully automated operations
Safety Protection: Grating sensors and emergency stop switches

Equipment Features

Versatile cutting capability for extensive array of V-slot featured boards
Resharpenable blades with at least two reshaping cycles for extended longevity
Adjustable circular blade height accommodates PCBs with varying component elevations
Single motor drive minimizes force requirements for smooth, effortless operation
Induction function automatically halts operations when operator approaches blade area
Dual protective mechanism ensures maximum production safety
Premium material construction for durable, long-lasting performance and reliability

Technical Specifications

Model	HS-300
Voltage	110V/220V (optional)
Power	100W
Efficient Cutting Length	5-360mm
Blade Size	Circular blade φ1253mm, Linear blade 36045*6mm
Blade Material	Import high quality high speed steel tool
Separating Speed	300mm/s
V-cut Thickness	1/3 of the board
Separating Width	Best 1-200mm
Machine Size	620320450mm
Weight	50kg

Application Fields

Electronic Manufacturing Industry

Precision splitting of printed circuit boards (PCBs) of various sizes and types for consumer electronics, industrial electronics, and related fields.

Solar Cell Manufacturing

Accurate cutting of silicon-based solar cells to enhance production efficiency of solar products.

Glass Processing

Precise splitting of mobile phone screens, glass panels, and other glass products with minimal material loss.

Ceramic Industry

High-precision splitting of ceramic chips, ceramic substrates, and similar workpieces meeting stringent production requirements.

Other Manufacturing Applications

Versatile material processing including plastics and metals for automated production across various manufacturing industries.

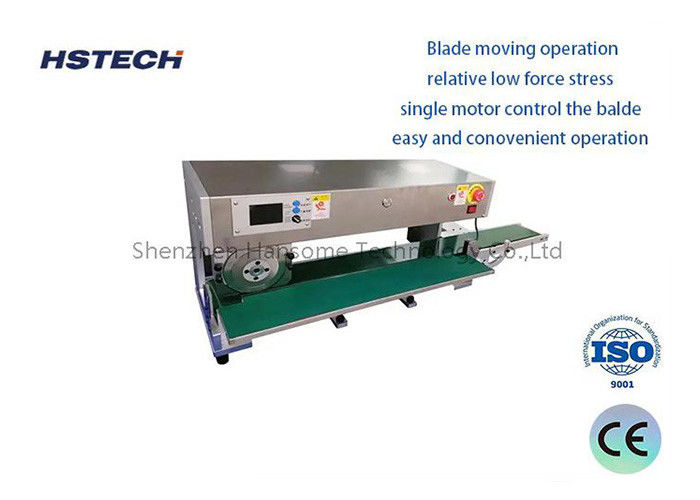

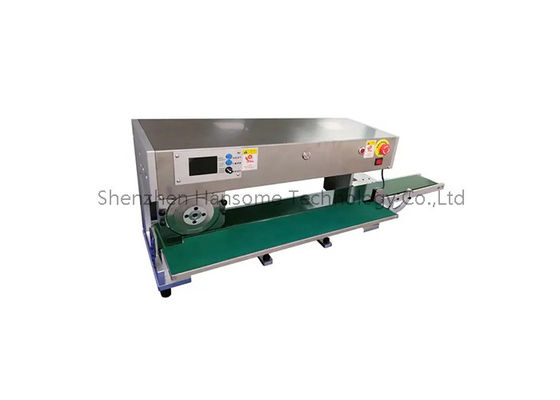

Equipment Images
