High Pressure Double Crank Control for SMT Feeder on Samsung SM Chip Mounter

Brand Name:	Samsung
Model Number:	SM Series Vibrating Feeder
MOQ:	1 pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Samsung SM Vibrating Feeder

Part Number:

3tube/5tube/IC Feeding

Application:

SMD Components Feeding

Material:

Aluminum Alloy

Warranty:

1 Year

Weight:

3.5KG

Packaging Details:

Carton package

Highlight:

High Pressure SMT Feeder

Double Crank Control SMT Feeder

Samsung SM Chip Mounter SMT Feeder

Product Description

Adjustable Vibration Intensity SMT Feeder for Samsung SM Chip Mounter

Introduction

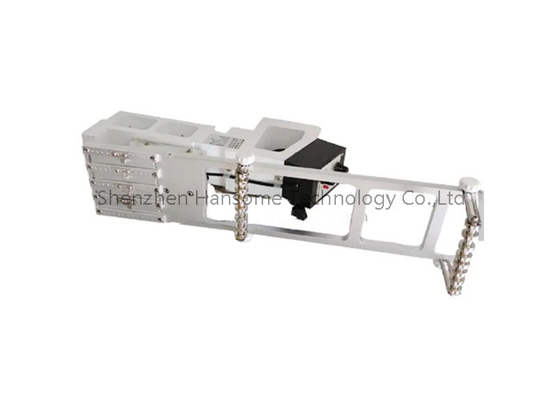

This Samsung vibrating feeder is designed for use with Samsung SM series chip mounters, offering options of 3-tube and 5-tube configurations, and capable of feeding IC components as well.

Specification

Name	Samsung SM Vibrating Feeder
Details	3 tube/5tube
Voltage	internal 24V, external 110V/220V

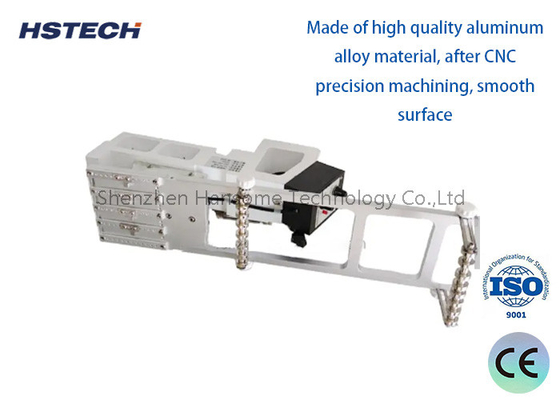

Material	Aluminum alloy
Weight	3.5 kg
Dimension	500110150mm
Applied chip mounter	Samsung SM chip mounter

Features

Featuring a simple linear structure, the installation and maintenance process is straightforward and easy.
We utilize advanced components from world-renowned brands for the pneumatic, electrical, and operational parts.
A high-pressure double crank mechanism is employed to precisely control the die's opening and closing.
Operating with a high level of automation and intellectualization, it ensures a clean and pollution-free environment.
A linker is used to seamlessly connect the air conveyor with the filling machine, enabling direct inline operation.

High Pressure Double Crank Control for SMT Feeder on Samsung SM Chip Mounter 0

High Pressure Double Crank Control for SMT Feeder on Samsung SM Chip Mounter 1

High Pressure Double Crank Control for SMT Feeder on Samsung SM Chip Mounter 2
