Customizable Automatic Soldering Robot for PCB Assembly with Manual Programming

Desktop Soldering Machine Manual Teaching Box with Hiwin Linear Guide Brand

Introduction:

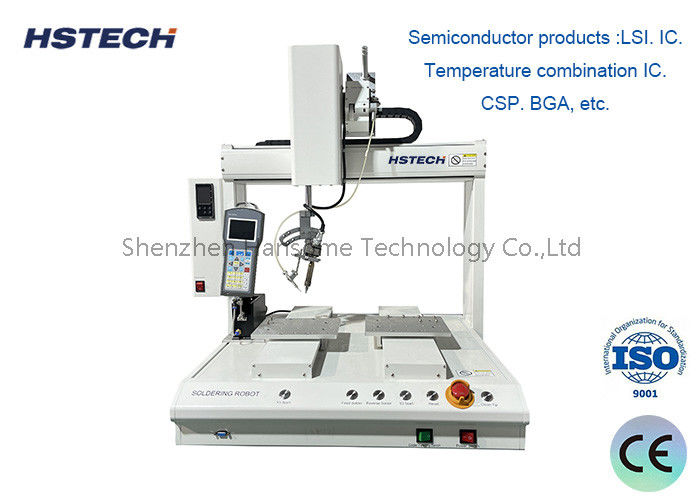

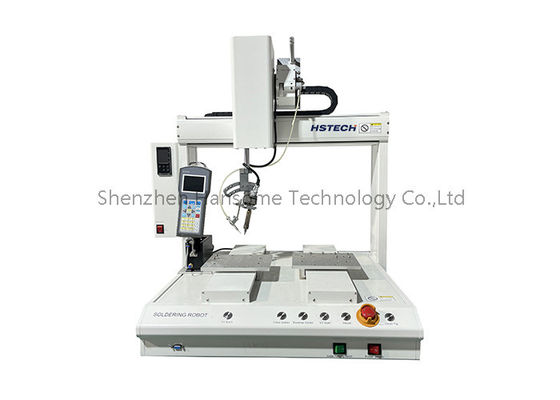

This widely-used automatic desktop soldering machine incorporates a teaching box for intuitive manual programming and operates with high-performance stepper motors and timing belts. It provides the flexibility of single or double workstations and features a standard travel range of 300*300mm, which can be tailored to suit individual customer product specifications.

Application:

1. Semiconductor Products: Including LSI, IC, Temperature Sensor IC, CSP, BGA, and more.
2. Optical Products: Featuring top-tier cameras.
3. Home Appliances with General Functions: Such as DVDs, audio equipment, automotive navigation systems, personal computers, cameras, electronic clocks and watches, PDAs, photocopying calculators, liquid crystal TVs, and medical devices.
4. Precision Machinery/Electrical Products: Including VTR.
5. General Consumer Goods: Encompassing typewriters, toys, musical instruments, CDs, batteries, and various other items.

Features:

1. This machine offers 4-axis operation, encompassing X/Y/Z movements and R rotation, facilitating multi-angle soldering tasks.
2. It features an automatic cleaning function that uses a soldering iron/tip without nitrogen, ensuring both safety and environmental compliance.
3. High precision and accuracy in movement are achieved through the incorporation of Taiwan's Hiwin linear guides.
4. The control system utilizes a well-established control board and is also PLC-compatible for added versatility.
5. The Iron head serves as a reference point for aligning the product's key position. Simply pressing the enter key automatically records this point in the system, enabling subsequent data settings.
6. By combining high-precision stepper motors and timing belts with advanced motion control algorithms, the machine significantly improves motion positioning accuracy and repeatability.
7. The automatic cleaning function not only stabilizes the soldering process but also extends the lifespan of the soldering iron.
8. Programming is intuitive with the handheld LCD teaching pendant, providing high precision and user-friendly operation.
