HS-203/HS-206 PCB Depaneling Equipment with Light Curtain and Steel Blades

Name: HS-203/HS-206 PCB Depaneling Equipment with Light Curtain and Steel Blades
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-203
Price: 1,000.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-203
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

V-cut PCB Separator

Blade:

Upper Circular Blade And Bottom Linear Blade

Operation:

Blade Moving

Switch:

Foot Switch

Suitable Board:

FR4,aluminum,fiber-glass Board,LED Board,LED Strip

Color:

Blue,white

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Light Curtain PCB Depaneling Equipment

Steel Blades PCB Depaneling Equipment

PCB Depaneling Equipment

Product Description

60W Power Foot Switch Upper Circular Blade And Bottom Linear Blade

Features:

It efficiently cuts any quantity with rapid speed, ensuring exceptional economy.
Crafted from imported high-quality steel, both the upper circular blade and the bottom linear blade can be sharpened and reused multiple times.
Customer requirements dictate a customizable moving range of either 400mm or 600mm, while the circular blade can be adjusted by 5mm to accommodate diverse board thicknesses, thereby resolving issues related to varying V-cut grooves.
The cutting width is unlimited, with optimal functionality for individual PCBs ranging from 1mm to 200mm.
The operation platform can be adjusted according to the height of the PCB's upper components, maintaining a standard machine height of less than 32mm.
For enhanced safety, it incorporates a buzzer alarm protection system, a light curtain, and a protective blade, ensuring operator wellbeing and preventing potential injuries.

Specification:

Model	HS-203	HS-206
Voltage	AC110V/220V 50/60Hz
Blade size(circular blade)	ϕ125mm30mm3mm
Blade size(linear blade)	420mm×65mm×6mm
Max cutting length	5~400mm	5~600mm
PCB thickness	0.8~3mm
Separation speed	300~500mm/second(adjustable)
Separation width	Best 1~200mm
Components height	≤32mm( or customized)
Power	60W
Machine dimension	710x450x420mm	900x450x420mm
Weight	55kg	75kg

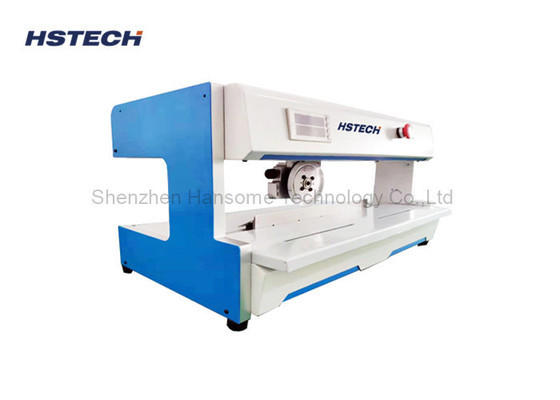

HS-203/HS-206 PCB Depaneling Equipment with Light Curtain and Steel Blades 0

Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)

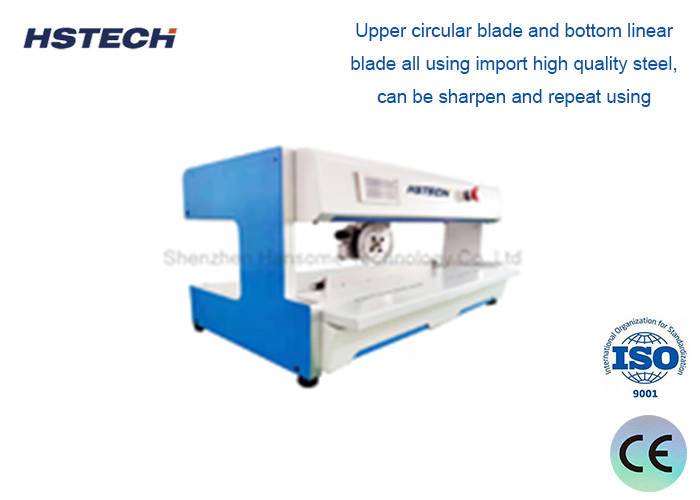

HS-203/HS-206 PCB Depaneling Equipment with Light Curtain and Steel Blades 1
