Self-locked Precisely Cut PCB Depaneling Machine with 300mm/s Cutting Speed for PCB Separation

Brand Name:	HSTECH
Model Number:	HS-203
MOQ:	1 set
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	500 PC/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Application:

PCB Assembly

Packing:

Wrap, Wooden Box

Cutting Speed:

300mm/s

Weight:

60KG

Dimensions:

Customizable

Power Supply:

Single-phase AC220V 50-60HZ

Packaging Details:

Wooden

Supply Ability:

500 PC/month

Highlight:

self-locked PCB board separator

precisely cut knife type separator

PC board PCB cutting tool

Product Description

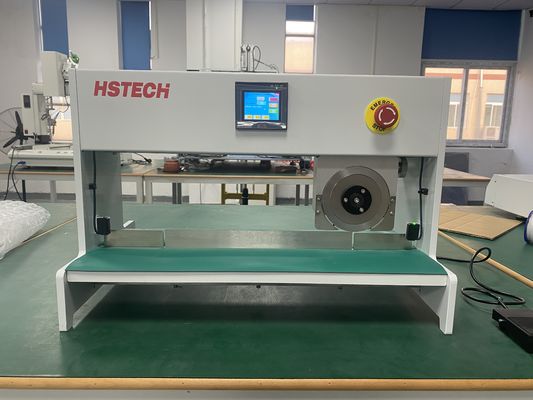

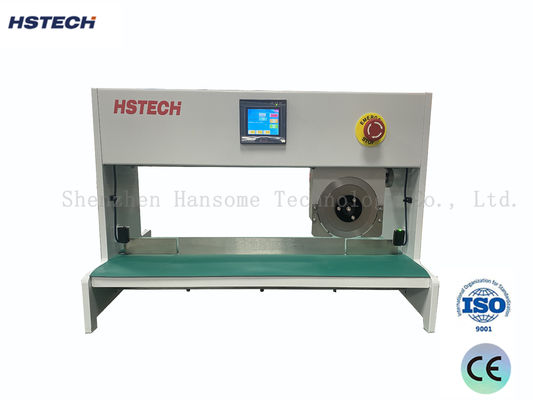

Self-locked And Precisely Cut Knife Type Board Separator With PC Board for PCB Cutting

In PCB manufacturing, multiple identical small circuit boards are often assembled into a single large board for production efficiency. After assembly completion, these boards require clean, non-destructive separation through a process called depaneling. This specialized machine performs this critical function with precision and reliability.

Technical Specifications

Power Supply	Single-phase AC220V 50-60HZ
Weight	60KG
Machine Dimensions	770mm (L) × 370mm (W) × 420mm (H)
Cutting Speed	300mm/s
Maximum Knife Wheel Stroke	350mm
Knife Wheel Fine Adjustment	0-3mm
Lower Knife Adjustment	0-2mm
Maximum PC Board Cutting Width	150mm
Maximum PC Board Cutting Length	350mm
PC Board Thickness Range	0.6-3.2mm
V-Groove Thickness Range	0.25-2.0mm

Key Features & Benefits

Infrared safety protection system stops machine operation when hands or foreign objects enter the cutting area
Stepper motor drive enables self-locking and precise cutting positioning when powered
Eliminates travel point variations common with DC and AC motors due to inertia
Prevents damage to circuits and electronic components during separation
Significantly improves work efficiency and production quality
Upper circular knife and lower flat knife design reduces stress during cutting
Prevents solder joint cracking and component breakage
Produces smooth, clean cuts without board separation issues
High-speed steel blades offer durability and can be re-sharpened approximately twice

Depaneling Technology Comparison

Scoring Depaneler

Principle: High-speed rotating milling cutter cuts along pre-designed V-grooves
Advantages: Fast operation, relatively low cost, suitable for simple shapes and straight lines
Disadvantages: Generates stress dust and places stress on board edges, unsuitable for fragile or high-density boards

Routing Depaneler

Principle: CNC-style high-speed spindle drives milling cutter along programmed paths
Advantages: Minimal stress, capable of cutting any shape (curved or irregular), high precision with clean edges
Disadvantages: Slower than scoring, higher equipment and maintenance costs
Applications: Mobile phones, automotive electronics, aerospace, and other high-reliability applications

Laser Depaneler

Principle: High-energy laser beam melts material for contactless cutting
Advantages: Completely stress-free, extremely high precision, narrow kerf, dust-free, suitable for delicate FPCs
Disadvantages: High equipment cost, relatively slow cutting speed, complex parameter adjustments for different materials
