High Precision Automatic PCB Router Machine for SMT Line with 60,000RPM PCB Depaneling

Name: High Precision Automatic PCB Router Machine for SMT Line with 60,000RPM PCB Depaneling
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: RT800LA / RT800L
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	RT800LA / RT800L
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Dimensions:

Customizable Based On PCB Size

Cutting Accuracy:

±0.05MM

Model:

RT800LA / RT800L

Machine Body:

Stainless Steel

Machining Table:

Double Table

Motor Drive:

Panasonic

Spindle Speed:

Max: 60000rpm

Warranty:

12 Months Manufacturer Warranty

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

60 000RPM PCB Router

±0.05MM Accuracy PCB Depaneling Machine

Product Description

High Precision PCB Router For SMT Line | Automatic PCB Depaneling With 60,000RPM

PCB Depaneling Router for SMT Production Line

Professional PCB Router Machine designed for high-precision PCB depaneling after SMT assembly. Suitable for rigid PCB, aluminum PCB, FR4, and complex outline cutting with straight line, arc, point, and V-CUT processing.

Ideal for EMS factories, PCB manufacturers, and SMT production lines that require accuracy, stability, and automation.

Core Advantages

High precision depaneling with 60,000 RPM spindle speed
Automatic operation for SMT production line integration
Versatile processing capabilities for various PCB materials
Multiple cutting patterns including straight line, arc, point, and V-CUT
Enhanced stability and accuracy for demanding manufacturing environments

Typical Applications

SMT production line PCB depaneling
Complex PCB outline cutting
High-density electronic boards
Automotive electronics, consumer electronics, industrial control boards

PCB Router Machine Technical Specifications

Machine Technical Parameters

Item	Specification
Machine Type	RT800LA / RT800L
Effective Cutting Size	300 * 350 mm
PCB Cutting Thickness	0.3 – 3.0 mm
Cutting Function	Straight line, point, arc, V-CUT
Machining Table	Double table
Cutting Accuracy	±0.05 mm
Repeat Positioning Accuracy	±0.01 mm
Entry Direction	Left in & right out

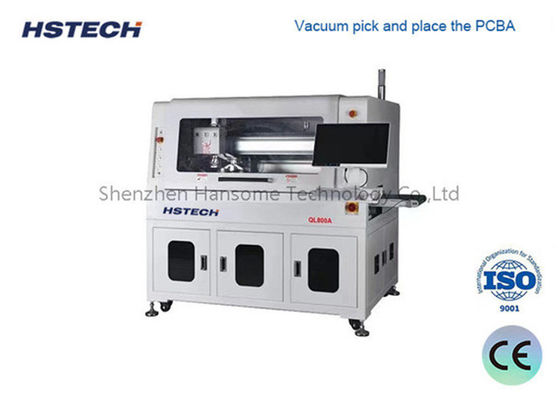

Mode of Entry & Exit	Vacuum suction
Rail Width Adjustment	Automatic track adjustment
Maximum Moving Speed	X/Y/Y2: 1000 mm/s, Z: 800 mm/s
Cutting Speed	5 – 100 mm/s (Optional)
Spindle Speed	Max 60,000 rpm
Suitable Milling Cutter Size	0.8 – 3.0 mm
Tool Change Mode	Automatic tool change
Tool Monitoring	Tool sinking, break detection, height auto correction
Control Mode	PC precision multi-axis control system
Host Control	Industrial computer mainframe
Motor Drive Mode	Panasonic servo drive
Lead Screw Guide	Taiwan TBI / Shangyin
Main Spindle Brand	NSK / German spindle (optional)

Power & Dust Collection

Item	Specification
Host Power Supply	AC 220V 50/60Hz, Single Phase
Dust Collector Power	3HP (2.2kW)
Dust Collector Power Supply	AC 380V, Three-phase
Dust Collection Mode	Lower dust collection / Upper dust collection (optional)
Dust Collector Size (LWH)	665 * 635 * 1610 mm / 718 * 764 * 1708 mm
Dust Collector Weight	155 kg

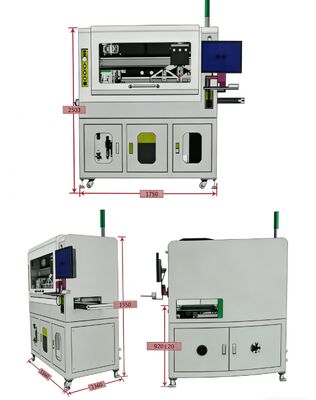

Machine Dimensions

Item	Specification
Cutting Host Size (LWH)	1750 * 1340 * 1587 mm
Saw Blade Size	80 * 0.3 * 22 mm
Saw Blade Motor Power	0.4 kW

Why Choose This PCB Router Machine?

High precision & repeatability
Stable long-time operation for mass production
Full automation reduces labor cost
Compatible with SMT lines & SMEMA interface
Low maintenance, industrial-grade components
