Automatic Precision Soldering Robot 8 Axis Dual Table Dual Head Robotic Soldering Machine HS-DH800

Name: Automatic Precision Soldering Robot 8 Axis Dual Table Dual Head Robotic Soldering Machine HS-DH800
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-DH800
Price: 3,450.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-DH800
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Working Station:

Dual Working Station

Editing Mode:

Teaching Pendant

Model:

HS-DH800

Wattage:

Max.300W

Weight:

Approximately 65KG

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

8 axis robotic soldering machine

dual head automatic soldering robot

precision soldering robot with dual table

Product Description

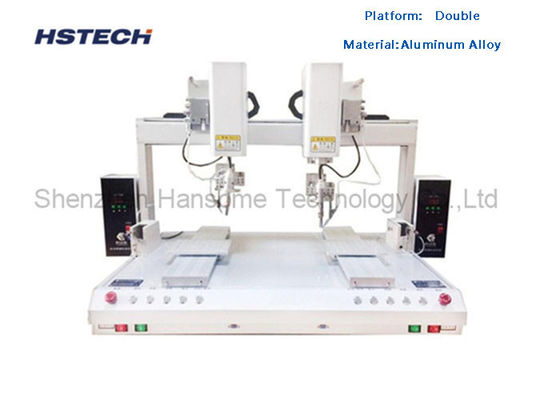

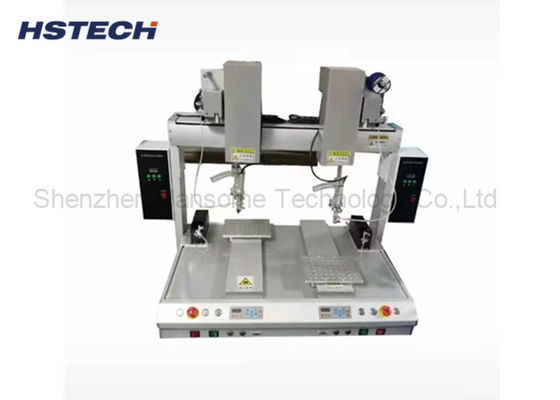

Automatic Precision Soldering Robot 8 Axis Dual Table Dual Head Robotic Soldering Machine HS-DH800

The HS-DH800 is a high-precision 8-axis robotic soldering machine designed for automated soldering applications in electronics manufacturing. Featuring a dual table and dual soldering head design, this system significantly improves production efficiency while maintaining stable and consistent soldering quality. It is ideal for PCB soldering, connector soldering, wire soldering, LED components, and various precision electronic assemblies.

Key Features

Dual Head + Dual Table Design

Two independent soldering heads
Dual working tables for alternating operation
Greatly improves productivity and reduces cycle time

Flexible Soldering Methods

Spot welding
Drag soldering
Custom soldering paths
Multi-function programmable operation

High Precision 8-Axis Motion System

X1/X2, Y1/Y2 Axis moving range: 300mm
Z1/Z2 Axis moving range: 100mm
Repeat accuracy: ±0.02mm
Precision stepping motor driven

Intelligent Programming System

Supports point-to-point programming
Block copy function to shorten programming time
Teaching mode and written programming mode available
Max 99 programs, 999 points per file

Additional Features

Automatic cleaning function ensures stable soldering quality
Durable aluminum profile structure
No deformation, anti-rust design
Stable long-term operation

Technical Parameters

Item	Specification
Model	HS-DH800
Input Voltage	AC110V / 220V, 50/60Hz
Max Power	300W
Moving Speed	300mm/sec (customizable up to 800mm/sec)
Repeat Accuracy	±0.02mm
Working/Fixture Load	5kg / 3kg
Preheating Temperature	50–500℃
Driving Method	Timing belt
Motor	Stepper motor, 2 phase, 3A
Communication Port	RS232
Solder Wire Diameter	0.3–1.5mm
Storage	Support flash storage
Machine Dimension	1016 * 685 * 800mm
Net Weight	65kg

Applications

PCB assembly
Consumer electronics
LED module soldering
Automotive electronic components
Transformer soldering
Communication devices
Wire harness soldering

Why Choose HS-DH800 Robotic Soldering Machine?

Increase production efficiency with dual-head system
Improve soldering consistency
Reduce labor cost
Minimize human error
Easy programming and operation
Stable long-term industrial performance

Customization & Support

We support:

Customized moving range
Speed adjustment up to 800mm/sec
Voltage customization
Technical support & overseas service
