Product Description

Automatic High Precision PCB Separator | V-Cut PCB Depaneling Equipment

High Precision PCB Separator for SMT Production Line

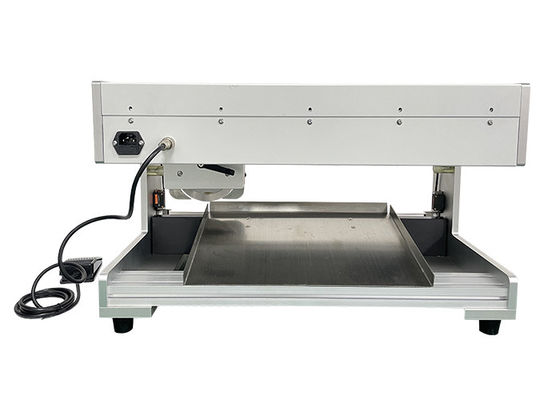

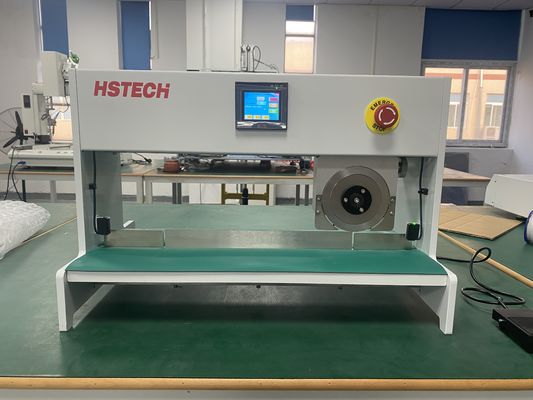

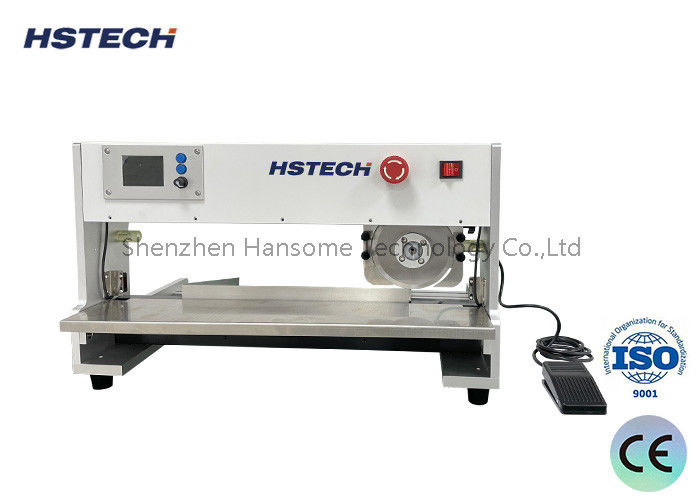

The PCB Depaneling Machine HS-203 is a high-precision V-cut PCB separator designed for efficient and safe separation of printed circuit boards after SMT assembly. The machine adopts an upper circular blade and lower linear blade structure, allowing the PCB to remain stationary during the cutting process.

By placing the V-groove of the PCB onto the linear blade, the upper circular blade moves horizontally to complete the depaneling process. This design greatly reduces mechanical stress on the PCB and protects sensitive electronic components from damage.

The HS-203 PCB separator is widely used in SMT production lines, electronics manufacturing, LED production, and PCB assembly plants, ensuring fast and reliable depaneling for mass production.

Key Features

High-Precision PCB Separation

The advanced blade movement technology accurately separates PCBs along the V-cut groove, ensuring clean cutting edges while minimizing board stress and reducing damage to components.

High Production Efficiency

Designed for mass production environments, the machine enables rapid PCB separation, improving production efficiency and saving valuable processing time.

User-Friendly Operation

The humanized design allows operators with different technical levels to operate the machine easily. Maintenance and daily operation are simple and convenient.

Precise Cutting Control

The machine provides adjustable cutting depth and pressure, allowing it to adapt to different PCB thicknesses and materials for precise depaneling results.

Reliable Safety Protection

Equipped with an infrared safety protection system, the machine automatically stops when hands or foreign objects enter the blade movement area, ensuring safe operation for operators.

Technical Specifications

Item	Specification
Model	HS-203
Power Supply	AC220V Single Phase, 50-60Hz
Machine Weight	60 KG
Machine Size	770 × 370 × 420 mm
Cutting Length	300 mm
Maximum Knife Wheel Stroke	350 mm
Fine Adjustment of Knife Wheel	0-3 mm
Lower Knife Adjustment	0-2 mm
Rear Baffle Width	150 mm
Maximum PCB Width	150 mm
Maximum Cutting Length	350 mm
PCB Thickness Range	0.6 - 3.2 mm
V-groove Thickness	0.25 - 2.0 mm

Advanced Design Advantages

Stepper Motor Drive System

The machine is driven by a stepper motor, enabling precise positioning and consistent cutting performance. Compared with traditional DC or AC motors, it prevents positioning deviation caused by inertia during long-term operation.

Reduced PCB Stress

The upper circular blade and lower flat blade design ensures that cutting stress is minimized, preventing solder joint cracking and component damage.

Smooth Cutting Surface

The cutting process produces clean and smooth PCB edges, improving product quality and reducing the need for secondary finishing.

Component Protection

When multiple PCBs are soldered together, manual breaking often damages circuits or electronic components. This machine effectively prevents such issues and significantly improves production yield.

Application Industries

The PCB Depaneling Machine is widely used in:

SMT Production Lines
PCB Assembly Manufacturing
LED Lighting Production
Consumer Electronics Manufacturing
Automotive Electronics
Communication Equipment Production
