Smallbatch/Multiple Offline Selective Integrated Selective Wave Soldering For THT Line

Brand Name:	HSTECH
Model Number:	SW-320YT
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Relay Brand:

Schneider

Step Length Optional:

30 / 60mm Or Manual Operation

Air Supply:

4-6bar,Max 15L/Min

Total Power:

2600W

Supply Ability:

30000PCS

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Product Description

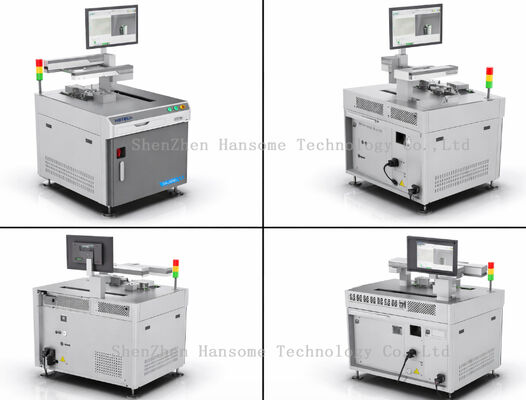

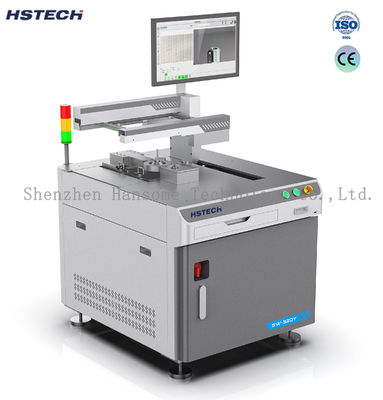

Smallbatch/Multiple Offline Selective Integrated Selective Wave Soldering For THT Line

Product Introduction

Advanced solution for DIP soldering challenges in small-batch and multiple-variety production environments.

Enables flexible production of multiple varieties and small batches
Quick setup for soldering without fixtures required
Extremely low equipment purchase cost
Minimal usage and maintenance costs (savings on tin slag, flux, electricity, and consumables)
100% tin penetration rate with over 98% soldering yield
Compact footprint with extremely low covering area

Working Principle

In offline selective soldering mode, the soldering nozzle remains fixed while the PCB board moves along X, Y, and Z axes according to programmed settings to achieve precise soldering of PCB solder joints.

Precision Spraying System

High-precision 0.5mm fluid spray nozzle using "Lumina" imported from Japan in original packaging.

PCB Preheating Systems

Top Side Preheating (Optional)

Utilizes 1KW infrared heating tubes to preheat PCB board top before soldering. Meets high temperature requirements for special components, reduces thermal shock, activates flux activity, improves component pin tin penetration, and enhances soldering quality.

Bottom Side Preheating

Employs fast infrared heat conduction to preheat PCB board before soldering and maintains heating during the process. Features synchronized "preheating + soldering" design principle that improves soldering efficiency, increases tin penetration rate, reduces thermal shock for heat-sensitive components, and ensures high cleanliness of PCB after soldering.

Machine Features & Construction

Centralized wiring design for easy maintenance. Features Taiwan PMI screws and tracks.

Quick detachable tin furnace design for convenient maintenance.

Liquid and gas components are independent of the electrical box, ensuring safety and reliability.
