High Precision 5.5 KW Inline Selective Wave Soldering Machine For THT Production Lines

Name: High Precision 5.5 KW Inline Selective Wave Soldering Machine For THT Production Lines
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-500H
Price: 3,450.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-500H
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

Selective Wave Soldering Machine

Total Power:

AC 220V, 5.5 KW

Air Supply:

0.5 ~ 0.7 MPa

Control System:

PC + PLC

Weight:

650KG

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

5.5 KW inline wave soldering machine

selective wave soldering for THT production

automatic soldering robot with high precision

Product Description

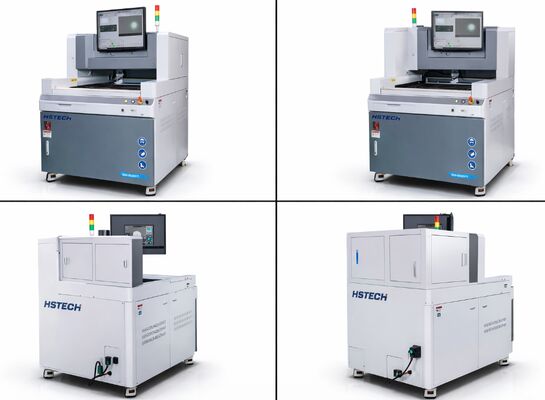

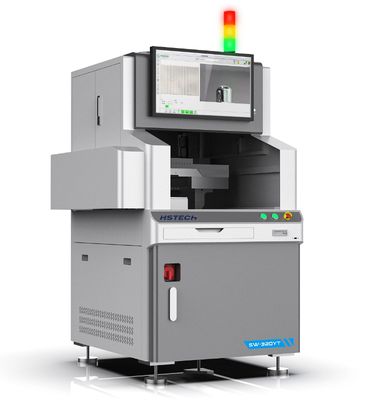

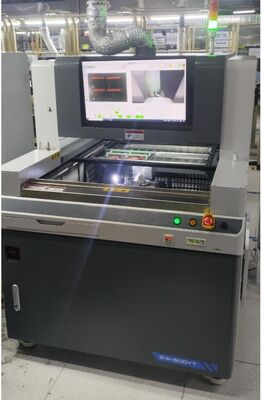

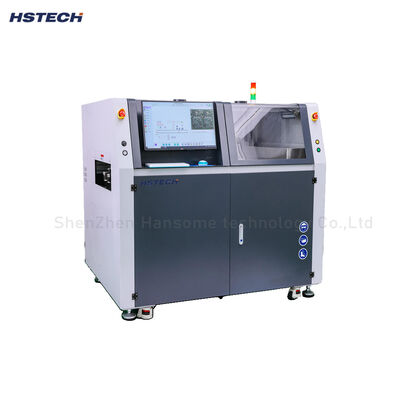

HS-500H Inline Selective Wave Soldering Machine

The HS-500H Inline Selective Wave Soldering Machine is a high-performance selective soldering system designed for modern electronics manufacturing. This precision equipment is ideal for SMT + THT mixed production lines, providing reliable and efficient soldering for complex PCB assemblies.

Key Advantages of HS-500H Selective Soldering System

High Precision XYZ Motion Control - Servo-driven system with ±0.02 mm positioning accuracy for fine-pitch components and high-density PCB soldering
Advanced Selective Soldering Technology - Point-to-point soldering minimizes thermal impact and prevents damage to sensitive components
Inline Design for Automation - Seamless integration into SMT production lines for high-volume automated PCB assembly
Nitrogen Protection System - High-purity nitrogen (99.999%) reduces oxidation for superior solder joint reliability and reduced defects
Intelligent Flux Spraying - Precision 0.5 mm atomizing nozzle with optional 130μm micro spray system for accurate flux application
Real-Time Video Monitoring - Continuous process monitoring improves quality control and reduces rework requirements

Technical Specifications

Model	HS-500H
Applicable PCB Size	L × W: 50 × 50 ~ 500 × 450 mm
Conveyor Height	900 mm ± 50 mm
Transport System	XYZ servo control, positioning accuracy ±0.02 mm
Applicable PCB Thickness	0.8 ~ 3 mm; Warpage ≤ 3 mm
Component Height	Top side ≤ 100 mm; Bottom side ≤ 50 mm
Solder Pot	Mechanical solder pot, 12 kg capacity, 2 kW preheating power
Top Heating	Infrared heating: 2.5 kW
Total Power	AC 220V, 5.5 kW
Nitrogen Requirement	Purity: 99.999%, Pressure: 0.5 MPa, Flow rate: 1.2 ~ 1.8 m³/h
Flux Spray Nozzle	Standard 0.5 mm precision atomizing nozzle (optional 130 μm micro spray)
Flux Capacity	2 L (automatic flux supply system)
Control System	PC + PLC (Windows + Mitsubishi)
Machine Dimensions	L × W × H: 1650 × 1350 × 1450 mm
Weight	650 kg (including 12 kg solder)

Primary Applications

Automotive PCB soldering
Industrial control boards
Power electronics
LED drivers & lighting PCBs
Communication equipment
Mixed SMT & THT assembly lines

Production Benefits

Reduced manual soldering costs
Improved solder joint consistency
Increased production efficiency
Lower defect rate and rework
Stable mass production capability

Request Customized Solution

Contact us today for detailed quotations, customized selective soldering configurations, and free consultation for your PCB soldering process. Send your PCB drawing or production requirements for optimal solution recommendations.
