High-precision Desktop Selective Soldering Machine For Through-hole Component Soldering

Name: High-precision Desktop Selective Soldering Machine For Through-hole Component Soldering
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-320
Price: 3,450.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-320
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

Desktop Selective Soldering Mahine

Solder Pot Material:

Stainless Steel

Solder Capacity:

10 Kg

Machine Weight:

70 Kg

PCB Thickness:

0.8~3 Mm (pin Length ≤3 Mm)

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

desktop selective soldering machine

through-hole component soldering robot

high-precision automatic soldering robot

Product Description

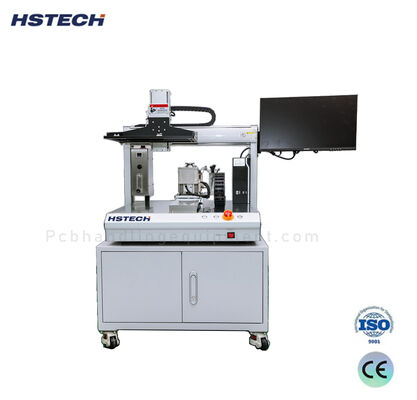

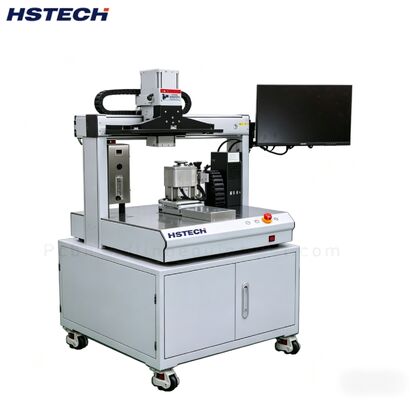

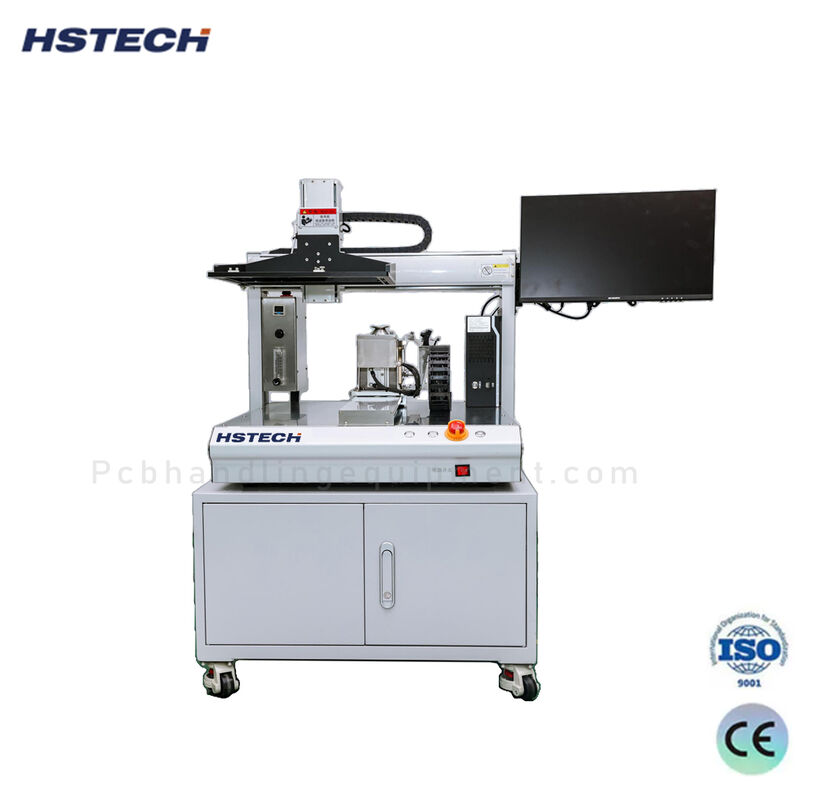

HS-320 Desktop Selective Soldering Machine

The HS-320 is a compact, desktop-style selective soldering system designed for high-precision through-hole component soldering. It is an excellent choice for small-batch production, prototyping, and maintenance environments where space is limited but quality cannot be compromised.

Product Specifications

Specification Item	HS-320
Applicable PCB Board Size (L*W)	50×50 ~ 320×250 mm
Applicable PCB Thickness	Board thickness: 0.8~3mm / Pin length: within 3mm
Component Height	Above board: below 100mm / Below board: below 50mm
PCB Shape & Conditions	1. PCB handling edge: ≥3mm 2. Weight of components: below 3KG 3. Board warpage: below 0.5mm
Solder Pot Material / Capacity	Stainless Steel / 10KG
Solder Pot Power	3×500W / 1.5KW
N2 Requirements	Purity: 99.999% Pressure / Consumption: 0.5MPa / 20-30 L/min / 1.2-1.5 m³/H
Flux Nozzle	Precision fluid nozzle
Flux Capacity	2L (Manual filling)
Air Supply	0.5-0.7 Mpa
Nozzle Inner Diameter	Φ3mm ~ Φ20mm (customizable)
Wave Height	Automatic adjustment / height measurement
System Control	PC + PLC (Windows + Inovance)
Programming Software	Supports image drawing for programming (fast and convenient)
Power Supply / Power	Single phase 220V ±10% Start-up power: 2KW
Weight	70KG (including 10KG solder)
Overall Dimensions (LWH)	730 × 800 × 840 mm

Key Features

True Desktop Design - With a footprint of just 730×800 mm, the HS-320 fits easily on any workbench -- ideal for labs, repair centers, and small workshops.
Precision Selective Soldering - Supports programmable wave height and customizable nozzle diameters (Φ3-20 mm), allowing precise soldering of individual through-hole pins without affecting surrounding SMD components.
Smart Control System - Combines a PC (Windows) and PLC (Inovance) for stable, real-time control. The image-based programming software lets operators create soldering paths quickly by drawing directly on a PCB image.
N2 Ready - Built-in support for high-purity nitrogen (99.999%) improves wetting, reduces dross, and ensures consistent solder joint quality.
Automatic Wave Height Calibration - The system automatically measures and adjusts wave height, reducing manual setup time and improving repeatability.
Integrated Solder Pot - Stainless steel pot with 10 kg capacity and 1.5 kW heating power -- sufficient for continuous operation in low-to-medium volume production.

Preheating Systems

Top Side Preheating (Optional)

1KW infrared heating tube preheats the PCB board top before soldering, meeting high temperature requirements for special elements. Reduces thermal shock, activates flux activity, improves pin tin penetration, and enhances overall soldering quality.

Bottom Side Preheating

Utilizes fast infrared heat conduction to preheat PCB boards before soldering and maintains heating during the process. Features synchronized "preheating + soldering" design principle that improves efficiency, increases tin penetration rate, reduces thermal shock for heat-sensitive elements, and ensures high cleanliness of PCB after soldering.

Applications

Through-hole component soldering
PCB repair and rework
Prototype verification
Small-batch production
R&D labs and technical training

Why Choose the HS-320?

The HS-320 bridges the gap between expensive inline selective soldering systems and manual soldering stations. It offers automation, precision, and repeatability at a fraction of the cost and space -- making it the smart choice for engineers and small-scale manufacturers.
