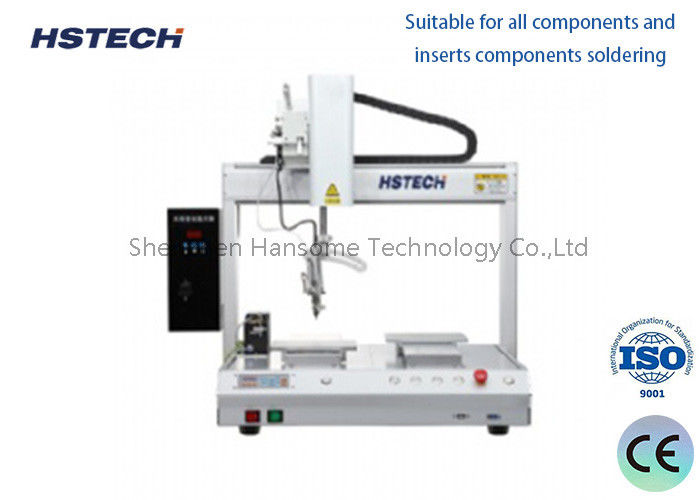

5 Axis Robotic Soldering Machine Double Y Platform Rotation Temperature Control

Are you facing challenges with inconsistent soldering quality, high labor costs, or difficulty in handling complex, heat-sensitive components? Our 4-Axis Robotic Soldering Machine is the ultimate automation solution designed to replace manual soldering and enhance your production line's efficiency. Powered by advanced servo motors and intelligent motion control algorithms, this soldering robot delivers unmatched accuracy, repeatability, and versatility for even the most demanding soldering processes.

The 4 Axis Robotic Soldering Machine is a high-efficiency, programmable automatic soldering solution designed for modern electronic manufacturing and SMT production lines. As a core industrial soldering equipment, this 4 Axis Automatic Soldering Robot delivers multi-dimensional flexible movement, precise positioning, and consistent soldering performance, perfectly replacing traditional manual soldering and low-precision semi-automatic soldering devices. It effectively resolves common drawbacks such as uneven solder joints, low repeatability, low output efficiency, and high labor dependence, helping manufacturers achieve standardized, automated, and high-yield soldering production.

Equipped with professional four-axis linkage motion structure, the 4 Axis Industrial Soldering Robot supports flexible operation in X, Y, Z and rotating axis, covering point soldering, line soldering, arc soldering and batch fixed-point soldering. It is widely compatible with various small and medium-sized electronic workpieces, becoming the preferred automated soldering equipment for precision electronic assembly.

• Double soldering Iron, double Y working platform.
• Handheld teach pendant programmer.
• Heating controller
• Broken tin controller
• Solder pen assembly
• Welding tip
• Tin out components

1. 5 Axis working, double working platform, with R rotation axis.
2. Single soldering iron the moving range has many options depends on the product dimension.
3. The whole machine made of high quality aluminum, machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.
4. Support many welding method, point welding, drag welding,and other functions.
5. Teach pandent programing, can save max 99 groups program.
6. Stepper motor and timing belt control, equipped with Taiwan brand linear guide at the same time.

The 4 Axis Robotic Soldering Machine is widely applied in precision electronic manufacturing and SMT assembly industries, suitable for mass soldering of various small and precise components:

• PCB & SMT Industry: Precision soldering for PCB circuit boards, SMT patch components, board terminals and bonding points
• Connector & Wire Harness: Soldering for wire harness terminals, plugs, data lines and various precision connectors
• Electronic Components: Soldering for resistors, capacitors, sensors, switches and miniature electronic parts
• LED & Lighting Products: Batch soldering for LED strips, LED modules and small lighting accessories
• Consumer Electronics: Precision soldering for wearable devices, audio accessories, household electronic parts and communication equipment

Compared with traditional manual soldering and ordinary three-axis soldering equipment, our 4 Axis Automatic Soldering Robot has obvious competitive advantages in industrial batch production. The four-axis rotating structure realizes omnidirectional dead-angle-free soldering, greatly expanding production applicability. Intelligent constant temperature control and automatic cleaning functions ensure long-term stable and consistent soldering quality. It effectively saves labor costs, improves production efficiency and product yield, and provides reliable automated soldering solutions for medium and high-end electronic manufacturing enterprises.

We support personalized function customization and factory direct sales. If you are looking for high-stability, high-precision and cost-effective 4 Axis Robotic Soldering Machine, please contact us for professional technical parameters and customized production solutions.

• Packaging: Standard export wooden case with anti-collision foam protection to ensure safe global delivery.
• Lead Time: 3-5 days for standard models; 7-10 days for customized orders.
• Global Shipping: We support FOB, CIF, and DDP shipping terms. Fast and reliable logistics available to international markets.
• Technical Support: Lifetime online technical support, remote debugging assistance, and detailed process guides provided.

Ready to Automate Your Soldering Process?

Stop relying on inconsistent manual labor. Contact us today for a FREE Quote and a live video demonstration of our 4-Axis Robotic Soldering Machine in action!
