V Cut PCB Separator Aluminum Alloy Touch Screen MITSUBISHI PLC SMT Depanel Machine

This Blade Moving V-Cut PCB Separator is engineered for high-volume electronics manufacturing, offering a reliable, low-stress solution for separating pre-scored PCB panels. Designed with a precision-guided blade system and adjustable feed mechanism, it ensures clean, burr-free cuts while minimizing mechanical stress on sensitive components — making it ideal for SMD, THT, and LED module applications.

• It can cut rapidly regardless of the quantity, very economic.
• Cutting distance setted by touch screen to align V slot in PCB,which makes the cutting stroke accurate without error.

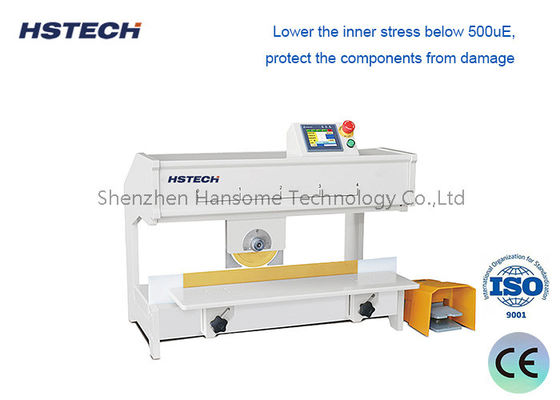

• Panel splitting process finished by using both moving blade and stationary blade,which can reduce stress and avoide fracturing of welding spot.
• PCB Stays still during panel splitting,blade slip forward and backward, ensure the quality.
• Compare with manual operation,it can reduce stress that will damage welding spot on PCB,improve working efficiency and product quality.
• The cutting distance can be set freely,range from 1 to 100m,which can better fulfill customer's demands and improve the working efficiency.
• The starting cutting position can be set freely, which can ensure the long lifespan.
• This machine equipped with counting function, can facilitates the data after the production.

This high-precision Blade Moving V-cut PCB Separator is essential SMT auxiliary processing equipment, widely used in all kinds of electronic manufacturing and PCB processing scenarios with high precision requirements:

1. SMT Mass Production Lines Suitable for continuous depaneling of batch V-groove PCB panels after SMT patch processing, matching the production rhythm of printing, mounting and reflow soldering processes to realize streamlined and efficient PCB separation.
2. Precision Electronic Manufacturing Workshops Ideal for processing high-precision circuit boards such as communication equipment PCBs, industrial control mainboards, automotive electronic boards and medical device circuit boards, effectively protecting precision components from cutting damage.
3. R&D and Prototype Testing Laboratories Adapt to small-batch trial production and prototype PCB splitting in electronic R&D laboratories, supporting flexible parameter adjustment to meet diversified experimental and sample processing needs.
4. Consumer Electronics Production Industry Widely used in the production and processing of household appliances, smart devices, wearable electronics and other consumer electronic products, ensuring stable product yield and consistent processing quality.
5. Quality Inspection and Rework Stations Used for secondary splitting and reprocessing of unqualified PCB panels, providing low-stress and high-precision separation solutions for PCB repair and rework links.

1. Superior Movable Blade Cutting Technology, Higher Product Yield Different from traditional manual breaking and fixed blade cutting machines, our core blade moving design solves the industry key problem point of high defective rate caused by cutting stress. It ensures zero damage to precision components, greatly reduces production loss and rework cost, and effectively improves finished product qualification rate.
2. Genuine MITSUBISHI PLC Control, Stable and Low Failure Rate Adopting original MITSUBISHI PLC control core with mature industrial control technology, the equipment operates stably for a long time without program crash or parameter deviation. Compared with ordinary domestic control systems, it has stronger anti-interference ability and longer service life, reducing equipment downtime and maintenance cost.
3. Industrial-grade Aluminum Alloy Structure, Long Service Life The whole machine is made of high-strength aluminum alloy material, which is rust-proof, anti-deformation and shock-resistant. It can adapt to long-term high-intensity industrial workshop operation. The precision guide rail and blade assembly are strictly calibrated to ensure long-term consistent cutting accuracy and stable equipment performance.
4. Humanized Intelligent Operation, Low Operation Threshold Equipped with intuitive industrial touch screen English operation interface, the equipment supports one-key program calling and parameter memory function. Workers can master the operation quickly without professional training, effectively improving workshop production efficiency and saving labor cost.
5. Professional Factory Direct Supply with Reliable Service We are a professional SMT equipment manufacturer integrating R&D, production and sales. All machines undergo strict aging test and precision calibration before delivery. We provide complete English operation manuals, operation tutorial videos and professional remote technical support, with long-term after-sales guarantee and spare parts supply service.
6. High Cost Performance and Wide Versatility This movable blade V-cut PCB separator balances precision, efficiency and price perfectly. It is compatible with most mainstream V-groove PCB processing demands on the market, avoiding repeated equipment investment, and is the ideal cost-effective depaneling equipment for medium and small factories and large-scale production lines.

Upgrade your depaneling process today — contact us for a live demo, custom configuration, or bulk pricing tailored to your production volume.
