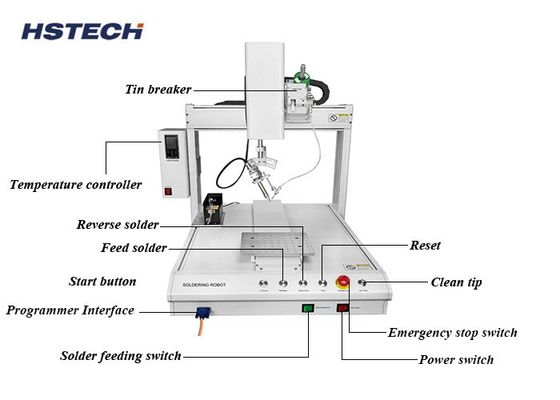

5 Axis Automatic Soldering Robot PCB Depaneling Machine Double Y Working Platform Equipment

The 5-Axis Automatic Soldering Robot is a high-precision, multi-degree-of-freedom automated solution engineered to replace manual soldering in complex electronics assembly. Designed for the rigorous demands of modern manufacturing, this system integrates five independent axes of motion to achieve unparalleled flexibility and accuracy in soldering intricate components. It is specifically tailored for industries requiring consistent, high-quality solder joints on non-planar surfaces, fine-pitch connectors, and densely populated PCBs. By automating the soldering process, this robot eliminates human error, ensures uniform thermal management, and significantly enhances production throughput, making it an indispensable asset for factories aiming to scale precision electronics manufacturing.

• Product Name: Automatic Soldering Robot
• Solder Time: 1.0 ~ 1.5s / Point
• Torque: 0.03-45kgf/cm
• Power Consumption: 100W
• Work Table: Dual (Double platform)
• Moving Range: 400x400x100mm
• Single Head for precision soldering
• Smoke purification filter system to ensure a clean working environment

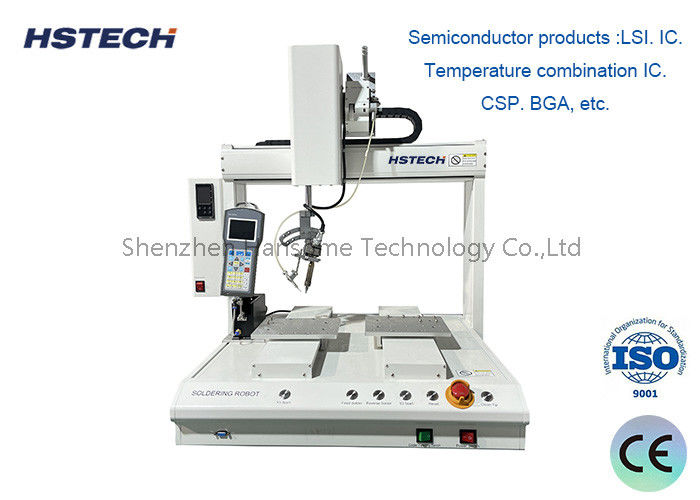

The Automatic Soldering Robot , model number HS-S5331R , is an innovative and high-efficiency solution developed for the modern electronics manufacturing scene. Originating from its manufacturing base in China, this brand-new equipment is designed to meet the challenges of precision soldering in various application scenarios.

Boasting an output voltage of DC 24V and adaptable to both 110V and 220V supply voltages, the Automatic Soldering Robot ensures compatibility with global industrial power standards. The swift solder time ranging between 1.0 to 1.5 seconds per point highlights its capability to expedite production processes without compromising on quality. Furthermore, its effective working area of 300x300mm caters to a wide range of assembly sizes, accommodating small to medium-sized circuit boards with ease.

One of the primary application occasions for the HS-S5331R is in the mass production of consumer electronics, where consistency and speed are paramount. Its Single Head design can precisely manipulate solder in complex patterns, making it an ideal fit for smartphones, tablets, and other compact devices that demand meticulous assembly work.

In the automotive electronics industry, where reliability is essential, the Automatic Soldering Robot ensures strong and durable solder joints for components that must withstand harsh operating conditions. With the integration of a Smoke purification filter system , it also prioritizes the health and safety of the workforce by minimizing harmful fumes during the soldering process.

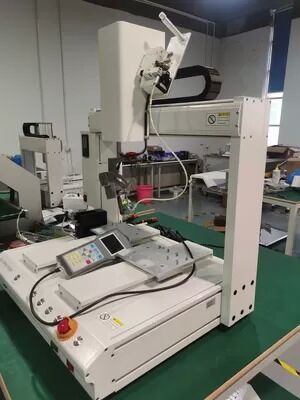

The Double platform feature of the HS-S5331R allows for a seamless transition between different production stages, enhancing workflow efficiency. This is particularly beneficial in scenarios like the manufacturing of LED panels, computer motherboards, and other multi-component assemblies that require a streamlined soldering operation.

Furthermore, the Automatic Soldering Robot is the equipment of choice for R&D labs and prototyping facilities. Its precise control and programmable features enable developers to quickly iterate on design changes and test new circuit configurations in a controlled and repeatable manner.

The versatility of the HS-5531R extends to specialized electronic sectors such as aerospace, medical devices, where consistent performance and reliability help meet the stringent standards for quality and durability.

Overall, the Automatic Soldering Robot model HS-S5331R represents a significant advancement in soldering technology, proving to be an indispensable tool in the modern electronics manufacturing landscape. With its robust build quality, innovative features, and adaptability to various application scenarios, it stands as a testament to the progress in automated manufacturing processes.

Introducing our latest Automatic Soldering Robot , model number HS-S5331R , a cutting-edge solution for your soldering needs. This brand new unit, originating from China , is equipped with a state-of-the-art Smoke Purification Filter System designed to maintain a clean and safe working environment by effectively removing smoke and particulates during operation.

Our Automatic Soldering Robot comes with a robust Double Platform design, enhancing productivity by allowing simultaneous preparation and soldering operations. The machine's external communication is managed through an RS232 interface, ensuring seamless integration with existing production lines.

The robot operates on a versatile Voltage range of 110V/220V , catering to various regional power supply standards. With a generous Working Area of 300x300mm and an extensive Moving Range of 400x400x100mm , it can handle a wide array of soldering tasks with precision and efficiency.

Our Automatic Soldering Robot is designed with precision and ease of use in mind, ensuring a seamless integration into your production line. To help you get the most out of your purchase, we offer a comprehensive suite of technical support and services. These include:

Installation Assistance: Our team of experts will guide you through the initial setup process, ensuring that your soldering robot is installed correctly and ready for operation.

User Training: We provide detailed training sessions for your staff to familiarize them with the robot's functions, software, and maintenance procedures, empowering them to operate the machine with confidence.

Software Updates: Regular software updates are available to enhance the functionality of your soldering robot and keep it up to date with the latest features and security improvements.

Preventive Maintenance: To ensure the longevity and reliability of your Automatic Soldering Robot, we offer preventive maintenance services to identify and address potential issues before they impact your production.

Technical Helpline: For any technical queries or troubleshooting, our dedicated support team is available to provide assistance and resolve any issues you may encounter with your soldering robot.

Parts and Repairs: We stock a comprehensive range of genuine parts for your soldering robot, and our skilled technicians are available to carry out any necessary repairs to keep your machine operating at peak performance.

Extended Warranty: For added peace of mind, we offer an optional extended warranty program that covers your soldering robot beyond the standard warranty period.

On-site Support: Should the need arise, we can arrange for a technician to visit your facility to provide specialized on-site support and services.

We are committed to ensuring your satisfaction and the optimal performance of your Automatic Soldering Robot. Our support team is dedicated to providing you with the highest level of service to meet your production needs.

Product Packaging for Automatic Soldering Robot:

The Automatic Soldering Robot is securely packed in a high-strength, corrugated cardboard box, with custom foam inserts that snugly fit around the machine to prevent movement during transit. The packaging is designed to withstand shocks and vibrations to ensure the product's integrity upon arrival. Additionally, the package includes a protective plastic cover to shield the robot from dust and moisture. All accessories and components are individually wrapped and labeled for easy identification.

Ready to transform your soldering process from a bottleneck into a competitive advantage?

The transition to automated precision doesn’t have to be complex. We invite you to take the next step toward manufacturing excellence with a personalized consultation tailored to your unique production challenges. Whether you’re looking to reduce defect rates, scale output, or integrate seamlessly into your existing line, our engineering team is prepared to provide a live demonstration, a detailed ROI analysis, or a customized quotation that aligns with your operational goals. Don’t let manual inconsistencies hold your quality and efficiency back—reach out today to discover how our 5-Axis Automatic Soldering Robot can become the cornerstone of your smarter, more resilient assembly line. Your journey to automated excellence starts with a single conversation.
