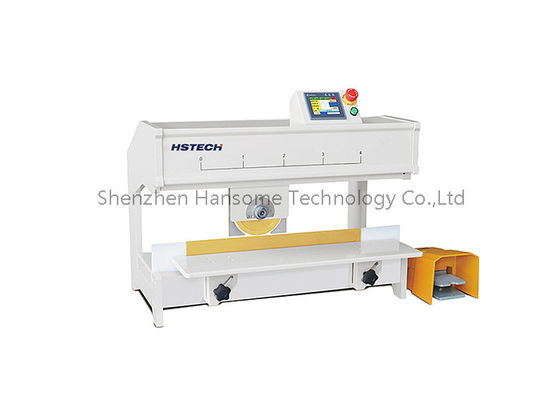

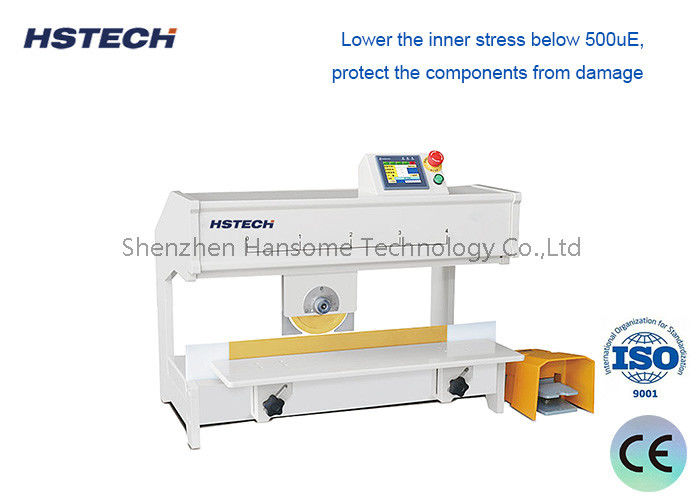

Aluminum Alloy V cut PCB Separator Touch Screen With MITSUBISHI PLC

The Blade Moving V-cut PCB Separator is a professional high precision SMT depaneling machine designed for separating pre-scored V groove circuit boards. Different from traditional board splitting equipment, this blade moving V-cut PCB separator adopts an advanced moving blade cutting structure, which delivers clean and flat cutting results without squeezing or stretching PCB boards. Equipped with stable operating system and precise mechanical positioning system, the PCB V-cut separator supports accurate cutting for various V groove PCB panels, effectively solving burrs, board cracking and circuit damage caused by manual splitting or ordinary stamping separation. Widely compatible with standard FR4 PCB boards, LED circuit boards and multi-layer circuit boards, this blade moving depaneling equipment serves as essential automated processing equipment for modern SMT assembly and electronic manufacturing production lines.

• It can cut rapidly regardless of the quantity, very economic.
• Cutting distance setted by touch screen to align V slot in PCB,which makes the cutting stroke accurate without error.
• Panel splitting process finished by using both moving blade and stationary blade,which can reduce stress and avoide fracturing of welding spot.
• PCB Stays still during panel splitting,blade slip forward and backward, ensure the quality.
• Compare with manual operation,it can reduce stress that will damage welding spot on PCB,improve working efficiency and product quality.
• The cutting distance can be set freely,range from 1 to 100m,which can better fulfill customer's demands and improve the working efficiency.
• The starting cutting position can be set freely, which can ensure the long lifespan.
• This machine equipped with counting function, can facilitates the data after the production.

This separator is versatile and widely used across various electronics manufacturing sectors:

• LED Lighting Manufacturing: Perfect for separating long aluminum substrate LED strips without cracking the solder joints.
• Automotive Electronics: Ideal for ECUs and dashboard modules where component reliability is critical.
• Consumer Electronics: Suitable for smartphones, tablets, and wearables containing fragile internal components.
• Industrial Control Boards: Handles thick, heavy PCBs often found in power supplies and motor controllers.
• Communication Modules: Ensures clean edges for RF modules and antenna boards.

• Superior Component Protection: Our moving-blade technology is specifically calibrated to minimize shear stress, offering a lower defect rate compared to standard pneumatic separators.
• Durability & Stability: Constructed with a heavy-duty cast iron base and high-grade linear guides to ensure long-term stability and minimal maintenance.
• Global Compatibility: Designed to meet international safety standards (CE/ISO) and supports multi-language interfaces, making it easy to integrate into global production lines.
• Cost-Efficiency: Consumable blades are long-lasting and widely available, reducing long-term operational costs.
• Expert Support: We provide comprehensive video tutorials, remote technical support, and a detailed operation manual to ensure quick setup and troubleshooting.

Don't let manual breaking or low-quality separation compromise your product yield. Upgrade to our Blade Moving V-cut PCB Separator today for cleaner cuts and safer assemblies.

Contact us now for a free consultation or request a video demonstration! Let our engineering team help you select the perfect configuration for your SMT line.
