4 Axis Automatic Soldering Robot Hiwin Linear Guide Auto Cleaning Iron Head Alignment

4 Axis Automatic Soldering Robot Equipped With Hiwin Linear Guide Auto Cleaning Iron Head Alignment For Electronic Assembly

Product Introduction

Our 5 Axis Automatic Soldering Robot is a precision automated soldering solution engineered for high-volume electronics assembly. Designed to replace manual soldering processes, this desktop robotic system delivers consistent, repeatable solder joints across PCBs, connectors, wire harnesses, and heat-sensitive components. Built with a 5-axis motion control platform (X/Y/Z/R + solder feed) and an intelligent temperature management system, it addresses the critical demands of modern SMT post-processing and through-hole soldering — including miniaturization, lead-free compliance, and high-speed production.

Features:

• Product Name: Automatic Soldering Robot
• Voltage: AC110V/220V
• Product Category: Automatic Soldering Robot
• Iron Tin cleaning: Air cleaning/pneumatic
• Motor: Stepper Motor
• R axis: 360 degree

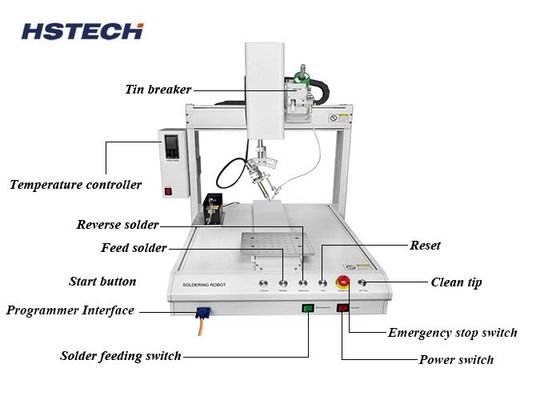

This Automated Soldering Equipment uses an Automatic Soldering Iron to provide precision soldering iron capabilities. Its Iron Tin cleaning feature uses air cleaning/pneumatic technology to ensure clean and efficient soldering. The machine is equipped with a Stepper Motor and can rotate 360 degrees around the R axis.

Technical Parameters:

Applications:

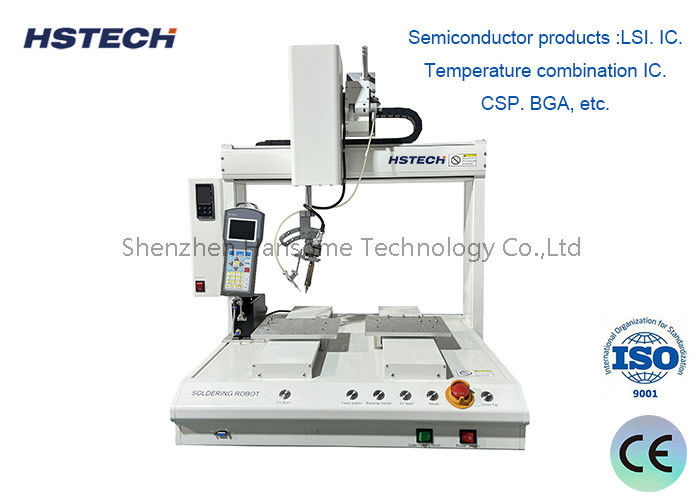

The HS-5331R automatic soldering iron tackles wires, circuit boards, and diverse electronic components with ease. Its point/drag method ensures precise soldering results, while the 360° R axis offers unparalleled tip positioning flexibility.

Designed for versatility, the HS-5331R boasts a 300300100mm workspace and lightweight 48kg body, fitting diverse soldering tasks and maneuvering around your work area. With a monthly supply of 200 pcs, it's readily available, shipping in 5-7 days in a protective wooden case.

Order just 1 set with flexible payment options (D/P, T/T, Western Union, ) and negotiable pricing. For soldering efficiency and reliability, the HSTECH HS-5331R is the ultimate choice, blending versatility, precision, and user-friendliness.

• Consumer Electronics: Smartphones, wearables, TWS earbuds — handling fine-pitch connectors (<0.5mm) and miniaturized components.
• Automotive Electronics: EV battery management systems, wiring harnesses, dashboard modules, and sensors requiring robust joints under thermal cycling.
• Telecommunications: 5G base stations, routers, and communication modules with dense PCB assemblies.
• LED Lighting & Displays: LED strips, LCD monitor modules, and backlight assemblies.
• Medical Devices: Catheters, endoscopic instruments, and diagnostic equipment with heat-sensitive components.
• Industrial Control & IoT: PCBs, connectors, power modules, and wire-to-board assemblies.

Why Choose Our Product?

• Proven Manufacturing Expertise: Backed by 10+ years of experience in SMT automation equipment, with products exported globally. Trusted by leading EMS providers and OEMs across consumer electronics, automotive, and industrial sectors.
• End-to-End Support: Free operator training, 1-year warranty (excluding consumables), and 24-hour online technical support. Engineers available for overseas installation, commissioning, and process optimization.
• Customization Capability: Tailored solutions for your specific soldering challenges — whether it's unique fixture design, special soldering patterns, dual-station configurations, or integration with existing conveyor-based production lines.
• Quality Assurance: 100% final inspection before shipment, 72-hour power-on aging test, and assembly process control. Defect rate below 0.5% in real-world applications.
• Fast Delivery & Scalability: Standard machines ship within 5–8 days; customized units within 15 days. Scalable from single desktop units to multi-station inline systems for high-volume production.

Support and Services:

Our Automatic Soldering Robot is backed by comprehensive technical support and services to ensure optimal performance and longevity. Our team of experts is available to answer any questions, provide troubleshooting assistance, and offer remote or on-site maintenance and repair services as needed. We also offer training and installation assistance to help you get the most out of your investment. Our goal is to ensure that your Automatic Soldering Robot is always operating at peak efficiency and delivering the highest quality results.

Packing and Shipping:

Product Packaging:

• One Automatic Soldering Robot
• One Control Unit
• One Power Cord
• One Set of Soldering Tips
• Instruction Manual

Shipping:

• Shipping Method: Standard Ground Shipping
• Estimated Delivery Time: 3-5 Business Days
• Shipping Cost: Free

FAQ:

Q: What is the brand name of this soldering robot?

A: The brand name of this soldering robot is HSTECH.

Q: What is the model number of this soldering robot?

A: The model number of this soldering robot is HS-5331R.

Q: Is this soldering robot certified?

A: Yes, this soldering robot is CE certified.

Q: Where is this soldering robot made?

A: This soldering robot is made in China.

Q: What are the payment terms for purchasing this soldering robot?

A: The payment terms for purchasing this soldering robot are D/P, T/T, Western Union, and .

Q: What is the minimum order quantity for purchasing this soldering robot?

A: The minimum order quantity for purchasing this soldering robot is 1 set.

Q: What is the supply ability of this soldering robot per month?

A: The supply ability of this soldering robot is 200 pcs per month.

Q: What is the delivery time for this soldering robot?

A: The delivery time for this soldering robot is 5~7 work days.

Q: How is this soldering robot packaged for delivery?

A: This soldering robot is packaged in a wooden package, with foam inside.

Q: Is the price negotiable for this soldering robot?

A: Yes, the price for this soldering robot is negotiable.

Ready to Transform Your Soldering Process?

Stop relying on inconsistent manual soldering and costly rework. Whether you're scaling up production, transitioning to lead-free compliance, or tackling complex micro-soldering challenges, our 5 Axis Automatic Soldering Robot delivers the precision, speed, and reliability your business needs.

Contact us today for a free consultation, customized quotation, or live demo. Send us your product samples or drawings — our engineers will design the optimal soldering solution for your production line, boosting quality, cutting costs, and accelerating your time to market.
