Inline High Precision PCB Depaneling Router Low Stress Circuit Board Separating Cutting Machine

High Precision Inline PCB Depaneling Router Low Stress Circuit Board Separating Cutting Machine Automatic PCB Panel Router For SMT Assembly Line PCB Depaneling Work

The Inline PCB Separating Router is a high-precision, fully automatic depaneling solution designed for continuous SMT production lines. Built for high-volume manufacturing, it accurately separates individual PCBs from panelized boards with minimal mechanical stress, protecting sensitive components and ensuring consistent cutting quality.

Equipped with an advanced CCD vision system and high-speed spindle, this inline PCB router delivers precise alignment, clean edges, and reliable performance for rigid PCBs, FR4 boards, aluminum PCBs, and densely populated PCBA panels.

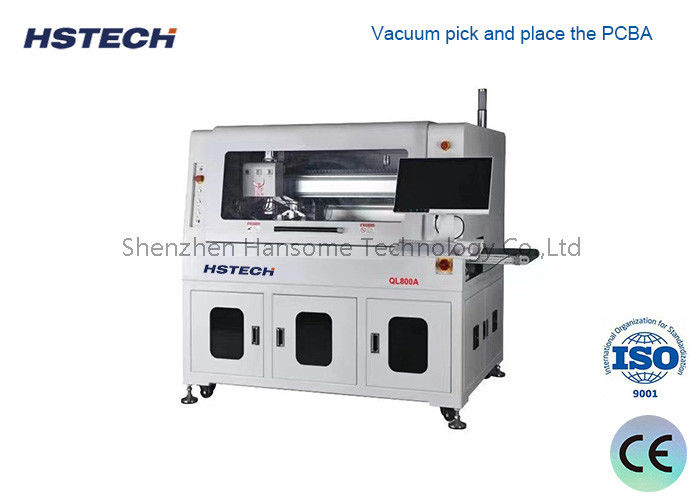

• Vacuum pick and place the PCBA.
• Bottom cutting.
• Double platform cutting.
• With broken knife detection.
• Connect the automatic production line.
• SPC statistics function and match the ERP system.
• Can be equipped with automatic tool change, explosion-proof function of vacuum cleaner and air volume monitoring function.

Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,compensation and positioning, with great stability and anti-disturbance capacity.

Bottom size routing and dust collector

Omnipotence vacuum suction chuck for picking, placing , unloading, and production.

Composite unloading system, used the ESD anti-static belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.

• Automotive Electronics: Engine control units, sensors, infotainment systems, ADAS modules
• Consumer Electronics: Smartphones, tablets, smart home devices, wearables
• LED Lighting: LED strips, LED panels, automotive lighting PCBs
• Medical Devices: Diagnostic equipment, monitoring devices, implantable electronics
• Industrial Control: PLC boards, communication modules, power supply PCBs
• Telecommunications: Base station components, network equipment PCBs

• Proven SMT Integration: Designed specifically for inline SMT production environments, compatible with standard conveyor systems and SMEMA protocols.
• Superior Cutting Quality: Advanced vision system and high-precision servo motors deliver burr-free, smooth edges that meet IPC quality standards.
• High Uptime & Low Maintenance: Automatic tool change, bit break detection, and durable mechanical design ensure stable, long-term operation with minimal maintenance.
• Flexible for Mixed Production: Quick program switching and fixture changeover support high-mix, high-volume manufacturing without sacrificing efficiency.
• Global Service Support: Professional technical team provides installation guidance, remote support, and spare parts supply to ensure smooth operation worldwide.

A: A Guillotine separator is best for simple straight V-cut lines. An Inline Router is ideal for complex shapes, curves, and boards without V-cuts. It also produces virtually zero stress, making it safer for sensitive components.

A: Yes. With our specialized fixture and vacuum suction system, the router can securely hold and cut thin, flexible, or uneven PCBs without deformation.

A: The machine is equipped with a high-performance vacuum dust collector that captures debris instantly at the cutting point, ensuring a clean working environment and protecting the PCB surface.

Ready to upgrade your PCB depaneling process? Whether you need a standard inline router or a customized solution for your specific production line, our team is here to help.

Contact us today for a detailed quotation, technical consultation, or video demonstration. Let us help you achieve higher yield, faster throughput, and cleaner cuts.

Your trusted partner for SMT automation solutions.
