Product Introduction

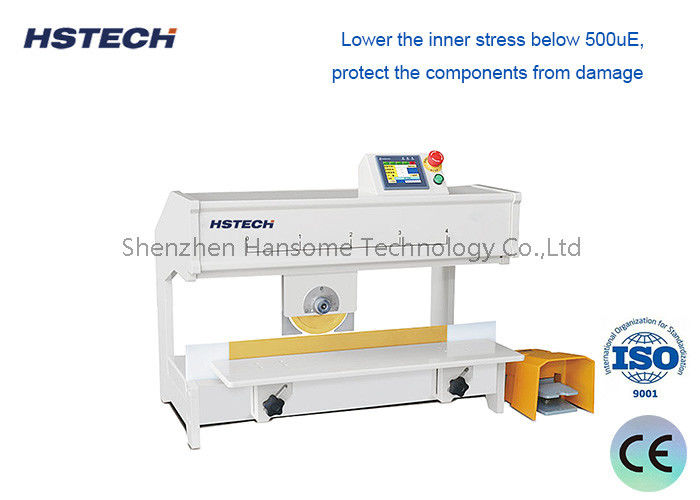

The Blade Moving V-Cut PCB Separator is a dedicated PCB depaneling machine designed to separate pre-scored V-Cut panels into individual boards with low stress and high consistency. Instead of moving or bending the PCB, the circular blade moves along the V-groove while the board remains fixed on the lower blade. This helps minimize mechanical stress on solder joints, components, and circuit traces during separation.

It is suitable for FR-4 PCBs, aluminum PCBs, LED boards, SMT assemblies, and other rigid boards with pre-scored V-grooves. The machine can be used as a standalone depaneling station or integrated with a conveyor system to improve workflow efficiency in electronics manufacturing.

Features

• 1, It can cut rapidly regardless of the quantity, very economic.

• 2, Cutting distance setted by touch screen to align V slot in PCB,which makes the cutting stroke accurate without error.

• 3, Panel splitting process finished by using both moving blade and stationary blade,which can reduce stress and avoide fracturing of welding spot.

• 4, PCB Stays still during panel splitting,blade slip forward and backward, ensure the quality.

• 5, Compare with manual operation,it can reduce stress that will damage welding spot on PCB,improve working efficiency and product quality.

• 6, The cutting distance can be set freely,range from 1 to 100m,which can better fulfill customer's demands and improve the working efficiency.

• 7, The starting cutting position can be set freely, which can ensure the long lifespan.

• 8, This machine equipped with counting function, can facilitates the data after the production.

Specfication

Application Scenarios

• LED Lighting Manufacturing
  Suitable for separating LED aluminum boards, LED strip boards, light bar PCBs, and other long V-Cut panels.

• SMT Post-Reflow Depaneling
  Used after SMT assembly to separate multi-unit PCB panels without excessive stress on solder joints and surface-mounted components.

• Consumer Electronics and Small Appliances
  Ideal for control boards, power boards, and small rigid PCBs with pre-scored V-grooves.

• Power Supply and Driver Boards
  Supports separation of FR-4 and aluminum-based boards commonly used in adapters, drivers, and power modules.

• Automotive and Industrial Electronics
  Helps maintain stable depaneling quality for boards requiring consistent edge separation and reduced mechanical stress.

• High-Volume PCB Production Lines
  Can be integrated into semi-automatic or automatic workflows to reduce manual breaking and improve production consistency.

Why Choose Our Blade Moving V-Cut PCB Separator

• Focused on Low-Stress Depaneling
  The blade moving design keeps the PCB stable during cutting, helping protect components and solder joints compared with manual breaking.

• Wide Material Compatibility
  Works with FR-4, aluminum PCBs, LED boards, and common rigid SMT boards with V-Cut scoring.

• Easy to Operate and Maintain
  Simple speed adjustment, programmable cutting length, and adjustable blade clearance make daily operation and maintenance more efficient.

• Stable Industrial Structure
  Built with a solid platform and guided blade movement to reduce board wobble and maintain consistent cutting quality.

• Cost-Effective Consumables
  High-speed steel blades can be re-sharpened, helping reduce long-term blade replacement costs.

• Flexible Line Integration
  Optional conveyor belt and customizable cutting length allow easier integration into different production layouts.

• Technical Support Available
  We can help confirm the suitable configuration based on your PCB thickness, cutting length, V-groove depth, and line speed.

Contact Us for a Quote

If you need a reliable and cost-effective solution for V-Cut PCB depaneling, the Blade Moving V-Cut PCB Separator can help improve cutting consistency and reduce manual handling risks.

Please share your PCB material, thickness, maximum cutting length, V-groove depth, daily output, and whether you need a conveyor belt. We will recommend a suitable model and provide a quotation accordingly.
