High Precision 4 Axis Compact Soldering Robot 360 Degree Dual Working Station with Auto Solder Feeding

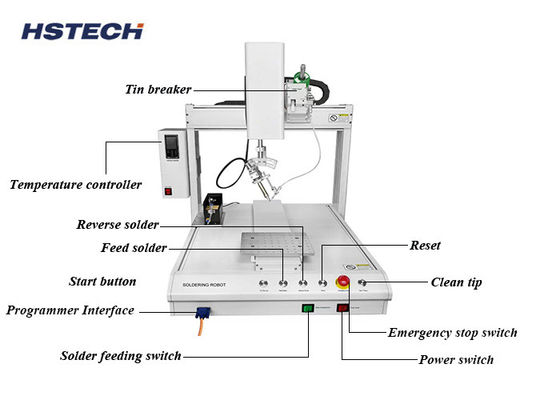

This automatic soldering robot replaces traditional manual soldering on SMT back-end lines. Customized fixtures hold the PCB, the temperature controller heats the solder tip, solder wire is fed automatically, and the machine solders every point according to the stored program. Operators only load and unload boards, so output and joint quality no longer depend on operator skill.

The machine carries two independent work surfaces. While the robot solders the boards on one station, the operator loads the next batch on the other, so the soldering head keeps working in circular mode instead of waiting for loading. Each station stores its own program, which means two different board models can run on the same machine without reprogramming between batches.

• 4 axis motion — X/Y1/Y2/Z linear axes plus R rotation, traveling distance 500×300×300×100mm.

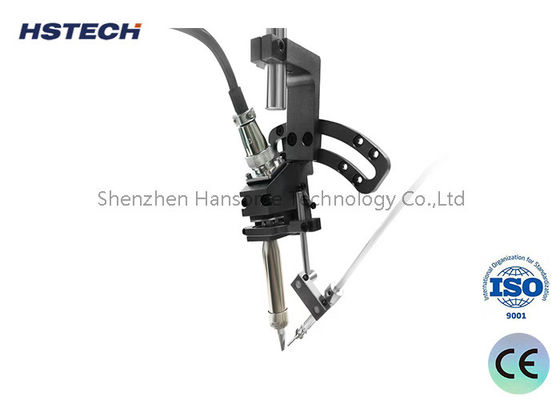

• 360 degree rotating soldering tip — the iron rotates freely so vertical, side and blind joints can be reached in one setup.
• Dual soldering tip and dual station — two tips and two working areas run alternately for continuous high efficiency production.

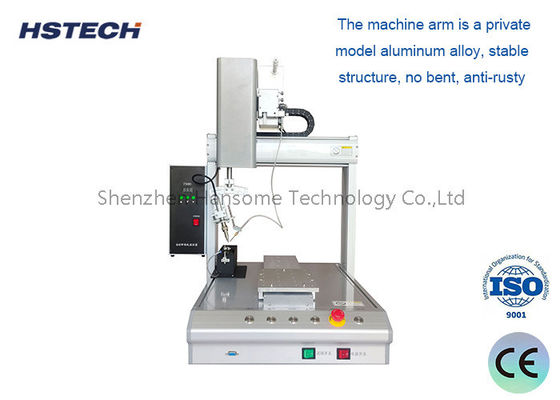

• High precision structure — high end aluminum frame, Taiwan brand linear guides, stepper motor and timing belt drive, repeat accuracy of ±0.02mm.
• Automatic solder wire feeding — precision tin volume control keeps solder volume consistent and saves at least 30% tin compared with manual soldering.
• Temperature stability — industrial heating and temperature controller holds accuracy within ±2°C.
• Flexible soldering paths — supports spot, drag, circle, curve and other irregular soldering on PCB panels.
• Smoke purification filter — filters soldering fume, extends tip life and improves workshop air quality.
• Automatic tip cleaning — pneumatic cleaning keeps the tip in stable condition and extends the service life of the iron.
• Compact benchtop structure — stable frame, small footprint, easy to move and maintain on any SMT line.
• Simple programming — teach pendant programming with program storage and import, supports CAD / DWG files.
• Fast model switching — programs are stored per product, switching between jobs takes only a program recall.

Mainly used for soldering processes that reflow soldering and wave soldering cannot handle, especially mixed circuit boards, heat sensitive components and sensitive devices in the SMT back-end process. Widely applied to PCB board soldering lines, charger plug welding, connector soldering, DC terminal tinning, LED strip light connection and similar electronics assembly jobs.

For factories running several small batches every day, waiting time for loading is the hidden cost. The dual station layout removes that waiting time, while the 360 degree rotating tip and stored programs remove changeover time. The machine pays back through stable joint quality, lower tin consumption and one operator handling two stations.

Send us your board drawing and soldering points, our engineers will confirm the fixture design, soldering program and delivery schedule for your production line.
