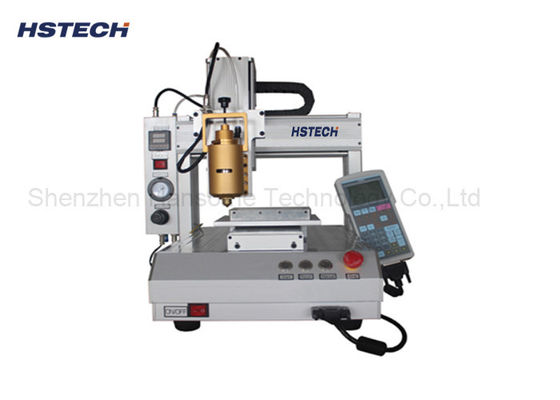

Automatic Desktop type 3 Axis Single Head PUR Gule Dispensing Machine

Name: Automatic Desktop type 3 Axis Single Head PUR Gule Dispensing Machine
Brand: HSTECH
SKU: HS-D331
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (169 reviews)

Large Image : Automatic Desktop type 3 Axis Single Head PUR Gule Dispensing Machine

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-D331

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	Wooden package, with foam
Delivery Time:	5~7 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per week

Contact Now

Detailed Product Description

Product Name:	Glue Dispensing Machine	Axis:	3 Axis
Working Range:	300300100mm	Speed:	Max 300mm/s
Condition:	New	Warranty:	1 Year
High Light:	industrial vacuum sealer machine , automatic glue dispenser

Automatic Desktop type 3 Axis Single Head PUR Gule Dispensing Machine

Specification

Model	HS-D331
Voltage	AC110V/220V,50/60Hz,Meanwell brand
Dispensing Valve	PUR heating valve
X/Y/Z working range	300/300/100mm
XYZ speed	300mm/s
Y platform	190*150mm
Repeat accuracy	0.02mm
Motor	Stepper motor
Driven system	Timing blet for X/Y, Z axis screw
Document support	CAD,CorelDRAW
Loading capacity	X/Y:10kg,Z:5kg
Linear Guide	CSK(Taiwan brand)
Photoelectric switch	PEPPERL+FUCHS(Germany brand)
Cylinder	AirTAC
Glue storage	30ml PUR Syringe type
Machine size	520585597mm
Gross weight	50kg
