4 Axis AB Glue Dispensing Machine High Precision 0.02mm Accuracy

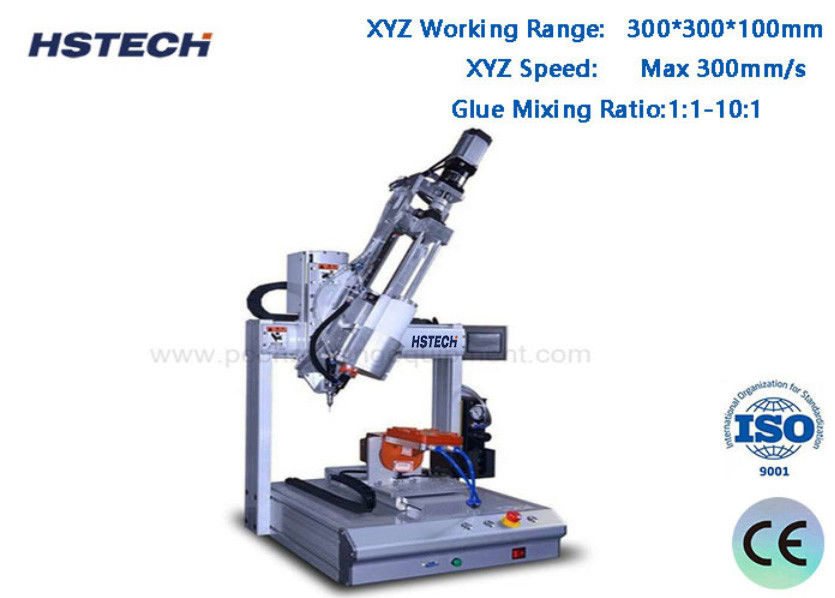

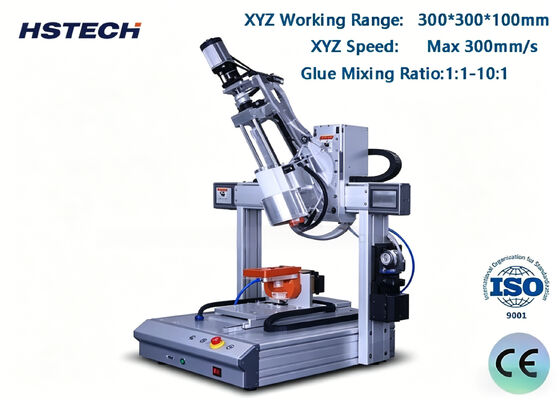

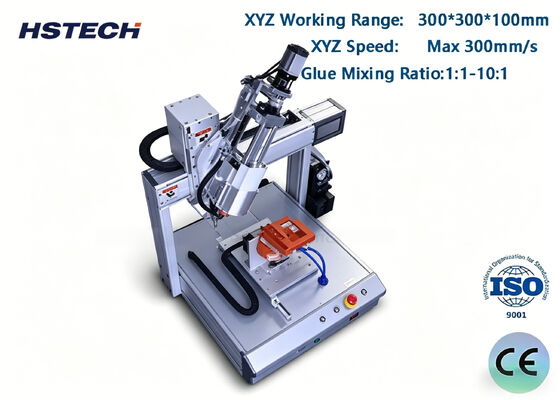

High Precision Automatic 4 Axis AB Glue Dispensing Machine 0.02mm Accuracy 300300100mm Working Area 1 to 10 Mixing Ratio Two Component Glue Dispenser

Product Introduction

The 4-Axis AB Glue Dispensing Equipment is a fully automated fluid control solution engineered for precision bonding, sealing, and potting of two-component epoxy, polyurethane, and silicone adhesives. Built on a robust 4-axis motion platform (X, Y, Z, and R-axis), this system seamlessly integrates a dual-component metering pump, static/dynamic mixing valve, and intelligent PLC control to solve the most common pain points of manual AB glue application: inconsistent mixing ratios, wasted material, and uneven bead formation.

Unlike standard 3-axis dispensers, the addition of a 360° rotating R-axis allows the dispensing head to maintain the optimal angle against complex workpiece geometries, ensuring uniform glue distribution on vertical surfaces, curved edges, and deep cavities. Whether you are potting sensitive electronic components or sealing automotive parts, this equipment guarantees a bubble-free, high-strength bond with minimal human intervention.

Machine Features

• PC computer LCD screen operation with intuitive programming interface
• Advanced path programming for points, lines, surfaces, arcs, circles, and continuous irregular curves
• Programmable glue volume, dispensing speed, timing, and stop parameters
• Specialized dispensing controller ensures stable output and clean, leak-free operation
• Rapid dispensing on inner/outer walls, vertical surfaces, gaps, and spherical surfaces
• Customizable configurations with fixtures, glue guns, controllers, and heating temperature control

Technical Specifications

Application Scenarios

This versatile 4-axis AB dispensing system is widely used across industries requiring high-reliability structural bonding and environmental protection:

• Consumer Electronics: Potting of TWS earphone batteries, sealing of smartphone camera modules, and underfill bonding for PCB components.
• Automotive Electronics: Sealing of ECU control units, potting of ignition coils, and structural bonding of sensor housings.
• LED & Lighting: Encapsulation of LED modules, waterproofing of outdoor light strips, and potting of power supply drivers.
• New Energy: Structural adhesive application for battery packs and potting of BMS (Battery Management System) boards.
• Industrial Appliances: Sealing of waterproof sensors, potting of transformers, and bonding of motor components.

Why Choose Our 4-Axis AB Glue Dispensing Equipment?

• Tailored Fluid Solutions: We don't just sell machines; we provide complete fluid dispensing solutions. Our engineering team analyzes your specific AB glue characteristics (viscosity, fillers, pot life) to recommend the optimal pump and mixing valve configuration.
• Premium Component Quality: We utilize industry-standard components (e.g., Panasonic/Yaskawa servos, high-precision linear guides) to ensure the equipment runs 24/7 with minimal downtime and consistent dispensing accuracy.
• Ease of Integration: The equipment is designed for flexibility, available in standalone benchtop models for R&D and small batches, or inline configurations that seamlessly integrate with your existing conveyor systems and MES data tracking.
• Comprehensive After-Sales Support: From remote debugging to on-site installation and operator training, we provide full lifecycle support to ensure your production line achieves maximum efficiency from day one.

Ready to Optimize Your Bonding Process?

Stop wasting expensive AB adhesive and struggling with inconsistent manual potting results. Whether you need a compact benchtop unit for prototyping or a high-speed 4-axis robot for mass production, we have the perfect automated dispensing solution for your factory.

Contact us today to discuss your specific glue requirements and request a custom dispensing evaluation. Let's elevate your product quality and production efficiency together!
