| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-250ULD |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Unloader | Color: | White |
|---|---|---|---|
| Power: | AC110V/AC220V,50/60Hz | PLC: | MITSUBISHI |
| Relay: | Schneider | Optoelectronic Switch: | Omron |
| High Light: | smt production line equipment,smt assembly equipment |
||

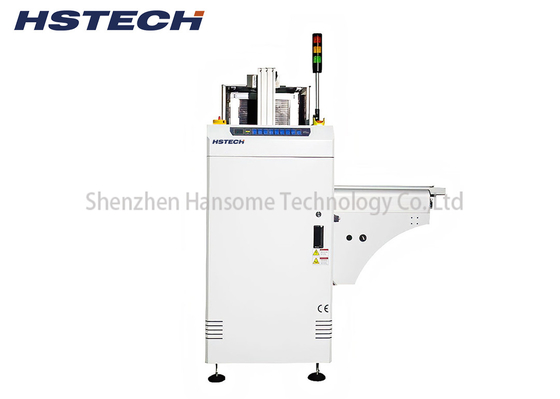

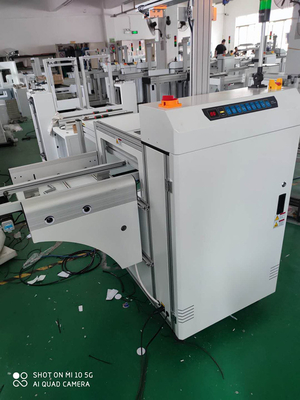

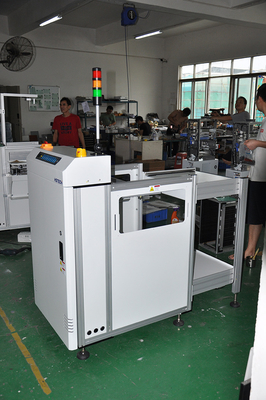

SMT Production Line Multiple Magazine PCB Unloader Board Handling Machine
Application
This machine is used for unloading the PCBs,collecting the PCBs into the Magazines.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches | 1-4(10mm step) | |||
| Communication | SMEMA | |||
| Machine dimension | 1700*780*1200 | 1900*860*1200 | 2200*920*1200 | 2200*1120*1200 |
| Weight | Approx 160kg | Approx 200kg | Approx 240kg |
Approx 260kg
|
Features
1, True color touch screen control
2, Mitsubishi PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
