| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-460DT |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package,with foam |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Bare Board Destacker | Color: | White |
|---|---|---|---|
| Power Supply: | AC110V/220V,single Phase,max 150A | PLC: | PANASONIC |
| Relay: | Schneider | Height Adjustment: | Feet Cup |
| Warranty: | 1 Year | Load Capacity: | Strong |
| High Light: | smt assembly equipment,pcb loader and unloader |
||

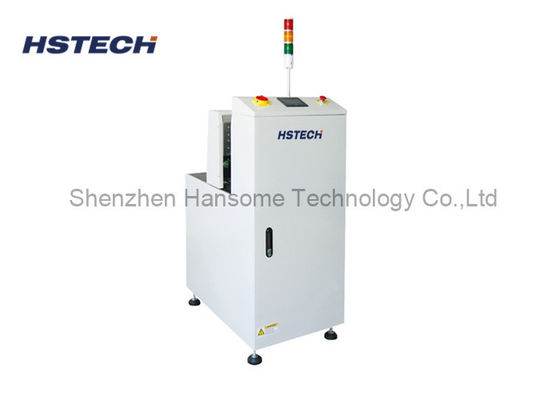

Panasonic PLC Stroe 50pcs Automatic PCB Bare Board Destacker Equipment
Application
This machine is used to loading the bare PCBs to the start of SMT line.
Specification
| Model | HS-330DT | HS-460DT |
| PCB Size | 50*50~460*330 | 50*50~530*460 |
| Usage | Loading the bare boards | |
| PCB thickness | Min 0.6mm | |
| Board loading time | 6s | |
| Air pressure | 4-6bar,max30L/min | |
| Transport direction | L-R or R-L(optional) | |
| Capacity | 10~150pcs | |
| Machine height | standard(900±20mm) | |
| Machine size | 600*820*1200mm | 700*950*1200mm |
Features
1, Panasonic PLC control.
2, Touch Screen Control, Step motor.
3, Full sheet metal structure,cooling soldering, computer white surface.
4, Uninterrupted loading, available for By-pass function.
5, Fast PCB feeding time, around 6 sec.
6, Smooth and parallel width adjustment(hand lead screw control).
7, Three color tower light display.
8, Whole machine in time error detection.
9, SMEMA communication interface,standard 4 pin wire.
