| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-390VL |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Vacuum Loader | Color: | White |
|---|---|---|---|
| Power Supply: | AC110V/AC220V,50/60Hz | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Stainless Steel | Condition: | New |
| High Light: | smt production line equipment,smt assembly equipment |
||

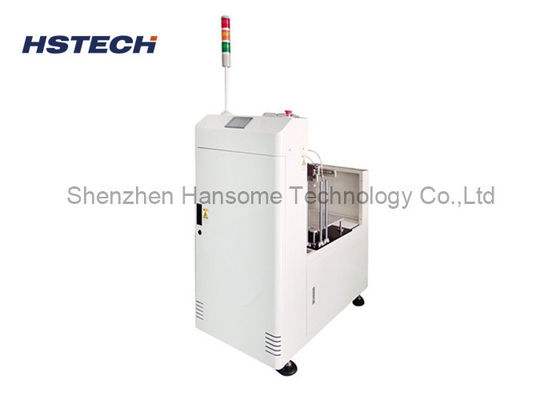

By Pass AC 110V - 220V Automatic Vacuum Loading PCB Thickness Handling Equipment
Application
This equipment used to loading bare boards to the start of SMT line.
Specification
| Model | HS-390VL |
| PCB dimension | (50*50)-(530*390)mm |
| Air supply | 4-6 bar,max 10L/min |
| Transport Direction | L-R or R-L (optional) |
| PCB thickness | min 0.4mm |
| Up/down pitches | 1-4(10mm step) |
| PCB store capacity | max 100pcs |
| Machine height | Standard(900±20mm) |
| Machien dimension | 600*950*1200mm |
| Weight | 150KG |
Features
1, The Bare Board Loader is used for automatically loading unpopulated boards at the beginning, the bare boards are lifted one by one from the stack by vacuum and are gently lowered onto the belt segment, ready for the downstream machine
2, Mitsubishi PLC central control system.
3, Touch screen control.
4, Bare boards loader mode & By-pass mode selectable, can used as a conveyor.
5, Adjustable vacuum stubs positions provide a better way to hold the PCB’s.
6, Automatically positioning the shuttle distance and accurate release the PCB on the conveyor rail.
7, SMEMA interface.
8, Tower light display.
