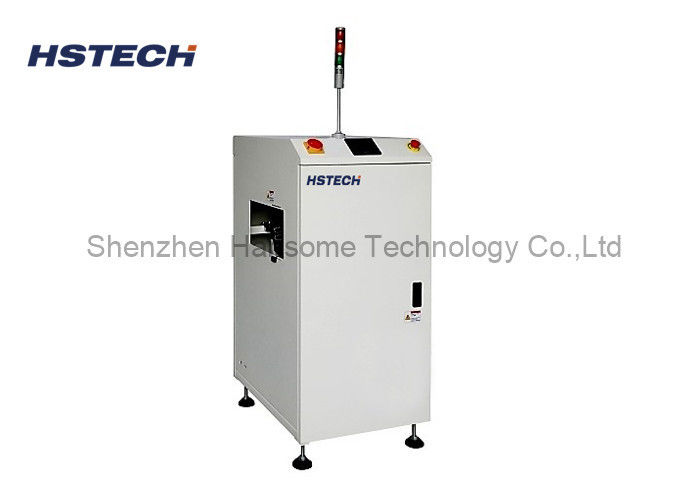

180 Degree PCB Handling Equipment Single Phase Max 300A High Power

180 Degree PCB Handling Equipment Single Phase Max 300A High Power
180 Degree PCB Handling Equipment Single Phase Max 300A High Power

Large Image :  180 Degree PCB Handling Equipment Single Phase Max 300A High Power

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-460FL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

180 Degree PCB Handling Equipment Single Phase Max 300A High Power

Description
PCB Flipper: Steet Metal Power Supply: AC100-230V,single Phase,max300A
PLC: MITSUBISHI Relay Brand: Schneider
Optoelectronic Switch: Omron Height Adjustment: Feet Cup
High Light:

smt production line equipment

,

smt assembly equipment

180 Degree SMEMA Communication interface Automatic PCB Flipper Handling Machine



This equipment is used to flip the PCB for double side process.



Specification



Model HS-460FL
PCB dimension (50*50)-(500*460)mm
Air supply 4-6 bar,max 10L/min
Transport height 900±20mm
Transport direction L-R or R-L (optional)
PCB thickness Min 0.4mm
Up/down pitches 1-4(10mm step)
Recycle time around 20 seconds
Communication SMEMA
Machine dimension 600*900*1200mm
Weight 140kg



Features



1, Stable and durable design, achieve the 180 degree board turnover stable.

2, Rotating power switch to use step motor,much more smooth than traditional motor.

3, With Pass through function.

4, Mitsubishi PLC central control system, stable performance.

5, True color touch screen control.

6, Flexible turnover,ball screw can connect the upper and down stream equipment smoothly.

7, SMEMA communication interface, can be connected with other automation equipment.
