| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-500SC |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package,with foam |
| Delivery Time: | 10~12 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Shuttle Conveyor | Color: | White |
|---|---|---|---|
| Power Supply: | Meanwell Driver,AC100-240V | PLC: | MITSUBISHI |
| Relay: | Schneider | Optoelectric Switch: | OMRON |
| Singal: | SMEMA | ||
| High Light: | smt assembly equipment,pcb loader and unloader |
||

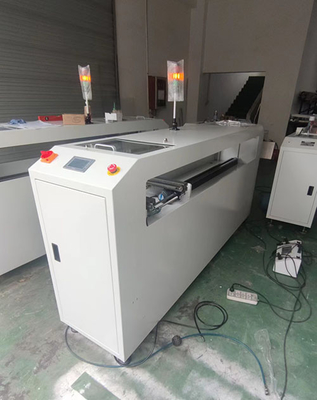

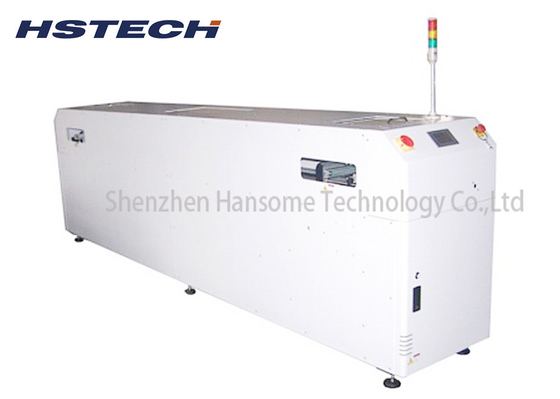

Buffering Slow Down Design PCB Board Handling Equipment Type Case
This machine also called PCB translation machine,which is used for transporting boards from one line into two lines or vice versa,the orientation of the board won't change during traversing.
Specification
| Model | HS-500SC |
| PCB dimension | (50*50)~(500*460) |
| Power supply | AC100-240V meanwell brand |
| Transport height | 900±20mm |
| Transport direction | L to R, or R ro L,(optional) |
| PCB thickness | Min 0.4mm |
| Machine dimension | 600*(1500~4800)*1100mm |
| Weight | 150~350kg |
Features
1, PLC control system.
2, With the function for transports the boards from 1 line to 2 lines, or combined 2 lines to 1 line, and by-pass function.
3, Using stepper motor translation accurate alignment
4, Buffering slow down design more stable and precision
5, Width adjustable, enclosed type case for safety
6, Standard SMEMA
