| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-460ULD |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Unloader | Power: | AC110V/AC220V,50/60Hz |
|---|---|---|---|
| PLC: | MITSUBISHI | Optoelectronic Switch: | Omron |
| Condition: | New | Structure: | Belt Conveyor |
| Speed: | Adjustable | Pcb Direction: | L-R Or R-L(customized) |
| High Light: | smt assembly equipment,pcb loader and unloader |
||

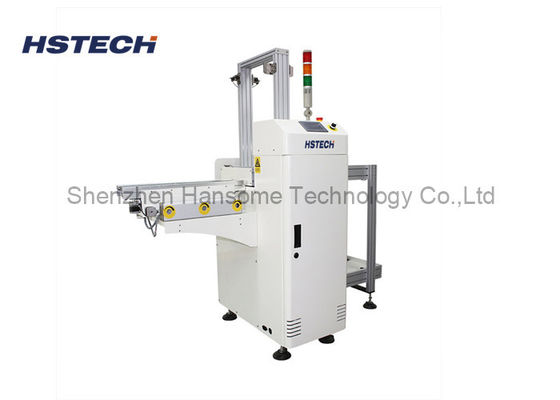

Standard Height Width Adjustment Board Handling PCB Unloader Machine
Features
1, Stainless metarials, durable.
2, With the special structure of anti clamping plate and foolproof.
3, 90W brake motor drive with ball screw make Magazine, step into the elevator.
4, Mitsubishi PLC
5, Selective pitch settings
6, Automatic magazine change-over.
7, Automatic magazine alignment by upper and lower pneumatic clamp in,
8, Tower light display for machine status
9, SMEMA Signal.
Application
This machine is used for collect the PCBs to the magazines at the end of SMT line.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | top side 1 pc, down 1 pc, or customized to hold more | |||
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine change over time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Step pitch selection | 1-4(10mm step pitchs) | |||
| Communication | SMEMA | |||
| Machine dimension | 1700*780*1200 | 1900*860*1200 | 2200*920*1200 | 2200*1120*1200 |
| Weight | Approx 160kg | Approx 200kg | Approx 240kg | Approx 260kg |
