| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-250-HM |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | NG OK PCB Unloader | Certification: | CE |
|---|---|---|---|
| Material: | Stainless Steel | Structure: | Belt Conveyor |
| Warranty: | 1 Year | Application: | SMT PCB Assembly Production Time |
| High Light: | smt production line equipment,pcb loader and unloader |
||

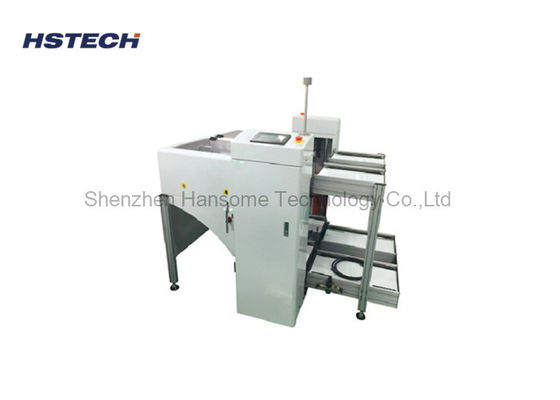

NG OK Unloader PCB Handlind Equipment , Magazine Collect For SMT Production line
This machine is used behind the AOI, to collect OK and NG PCBs separately after signals of AOI equipment.
Features
1, PLC Control system
2, Mitsubishi PLC
3, HMI control panel, easier operation
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Sensors control, store NG and OK PCB board separately and automatically
7, Standard height for SMT application(920±20mm)
8, Tower light display
9 , SMEMA signal
Specification
| Model | HS-250-HM | HS-300-HM | HS-390-HM | HS-460-HM |
| Power Supply | AC110V/AC220V 50H60Hz | |||
| Air Supply | 5kgf/C M2 | |||
| PCB Size(mm) | 50*50~330*250 | 50*50~450*330 | 50*50~530*390 | 50*50~530*460 |
| PCB Direction | left to right or right to left | |||
| Magazine Size(mm) | 335*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Step pitches(mm) | 10,20,30,40 | |||
| Transport Height(mm) | 900±20 | |||
| Transmission Speed | 10m/s | |||
| Main Motor Power | 420W | |||
| Machine Size(mm) | 1510*1530*1250 | 1910*1630*1250 | 2160*1760*1250 | 2160*1900*1250 |
| Weight(kgs) | 315 | 345 | 370 | 400 |
