| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-460BF |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Buffer | Certification: | CE |
|---|---|---|---|
| PLC: | MITSUBISHI | Structure: | Belt Conveyor |
| Warranty: | 1 Year | Application: | SMT PCB Assembly Production Time |
| Material: | Stainless Steel | Condition: | New |
| Highlight: | smt assembly equipment,pcb loader and unloader |
||

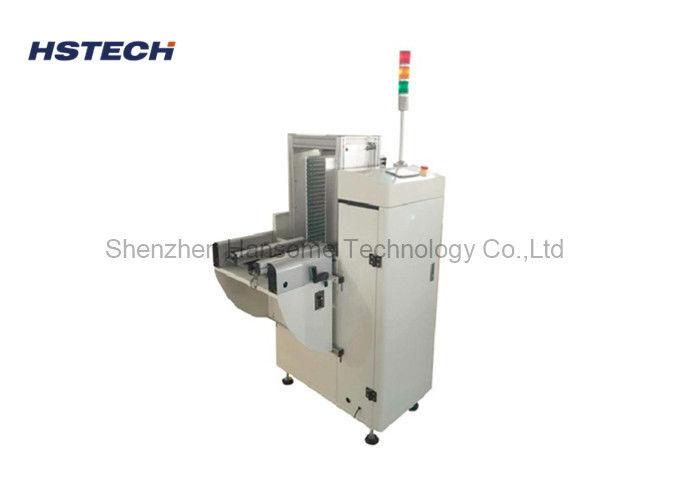

FIFO LIFO PCB Buffer Handling Machine with SMEMA Communication Interface
This machine for behind the SMT production line of AOI, SPI, NG and OK pcbs in staging and repair
Specification
| Model | HS-460BF |
| PCB Dimension | 50*50~500*460 |
| Power Supply | AC100-230V |
| Air pressure | 4-6bar,max 10L/min |
| Transmission height | 920±20mm |
| Transport direction | left to right, or right to left |
| Step pitch option | 1-4(25mm step pitch) |
| Stocking capacity | 20pcs |
| PCB thickness | Min 0.4mm |
| Machine Dimension | 600*1200*1700mm |
| Weight | 190kg |
Features
1, PLC control system
2, Touch screen control panel, easier operation
3, 12 pcs or as customer's request
4, Can store NG/OK pcbs automatically according to the signal of previous equipment
5, Build in recall for control the order of PCB pass in and out
6, FIFO(first in first out), LIFO(last in first out) and pass through function
7, Standard SMEMA
