| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-390LD |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~10 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | PCB Loader Unloader | PLC: | MITSUBISHI |
|---|---|---|---|
| Transport Belt: | Thick ESD Belt | Machine Body: | Full Stainless Steel |
| Loading Speed: | 6 Seconds | Load Capacity: | Strong |
| Application: | SMT PCB Assembly Production Time | Warranty: | 1 Year |
| High Light: | smt production line equipment,pcb loader and unloader |
||

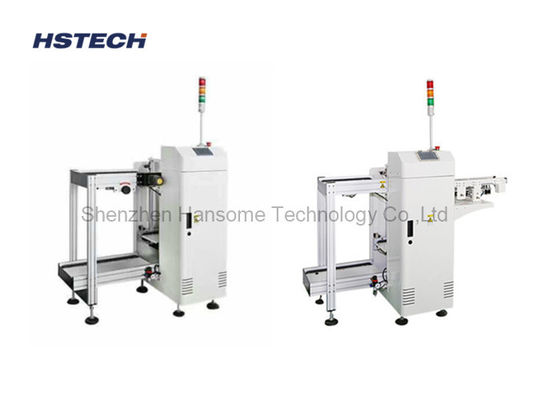

SMT Assembly Line Board Handling Equipment / PCB Loader Unloader
Application
This machines are used to transport the PCBs to the SMT assembly line, also unload the PCBs at the end of line.
Features
1, Special design full stainless steel structure machine body.
2, Can place two magazines, or customized if you need more.
3, Thick and ESD transport belt.
4, Width can be adjustable by hand shake.
5, Tower light display for machien status.
6, Flexible platform to suit for standard magazines.
7, Self diagnostic error detection.
8, Pusher position can be adjustable to centre of the magazine.
9, Regulated pressure on attached pneumatic pusher.
10, SMEMA signal.
Specification
| Model | HS-250LD | HS-330LD | HS-390LD | HS-460LD |
| Service support | Online support | |||
| Comucation | Using SMEMA signal | |||
| Conveyor belt | ESD 7mm belt | |||
| Driving motor | 15W fixing speed motor | |||
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 920±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches selection | 1-4(10mm step) | |||
| Machine dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| Weight | Approx 140kg | Approx 180kg | Approx 220kg |
Approx 230kg |
