| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-390CLD |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package,with foam |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Destacker & Loader Combined Machine | Color: | Computer White |
|---|---|---|---|
| Pcb Direction: | L-R Or R-L(optional) | Material Feature: | Stainless Steel |
| PLC: | MITSUBISHI | Driver: | Meanwell |
| Condition: | New | ||
| High Light: | smt production line equipment,pcb loader and unloader |
||

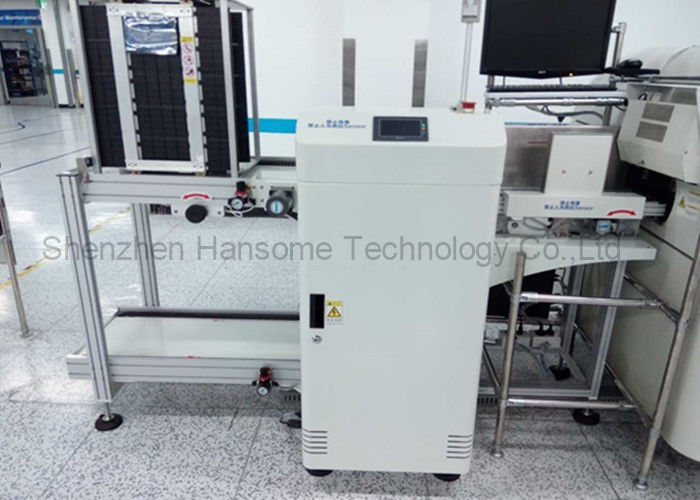

Multiple Magazines Four Pitches Destacker PCB Loader Combined Handling Machine
Features
1, This machine is used to load the PCBs to the SMT line, it can use as a normal magazine loader, or as a bare board destacker, two function combined.
2, Transport direction from left to right, or right to left.
3, 4 step pitches selection(10,20,30,40mm).
4, 2 magazines can be placed, top 1 pc, bottom 1 pc.
5, MITSUBISHI PLC and touch screen control method.
6, The whole machine is made of stainless steel.
7, Using the stepper motor for transporting.
8, Three color tower light display.
9, Air Cylinder and the electromagnetic valve.
10, Use the T type screw driver to adjust the width.
11, SMEMA communication interface.
Specification
| Model | HS-250CLD | HS-330CLD | HS-390CLD |
| PCB dimension | (50x50)~(350x250) | (50x50)~(455x330) | (50x50)~(530x390) |
| Magazine size | 355x320x565 | 460x400x565 | 535x460x565 |
| Machine size | 1700x780x1200 | 2000x860x1200 | 2100x920x1200 |
| Loading time | 6 seconds | ||
| Magazine changeover time | 20 seconds | ||
| Air pressure | 4-6 bar, max 10L/min | ||
| Transport height | 920±20mm | ||
| Transport direction | left to right, or right to left | ||
| PCB thicknes | Min 0.4mm | ||
| Magazine quantity | 2 pcs | ||
| Step pitches | 1-4(10mm pitches) | ||
| Weight | Approx 200kg | Approx 220kg | Approx 240kg |
