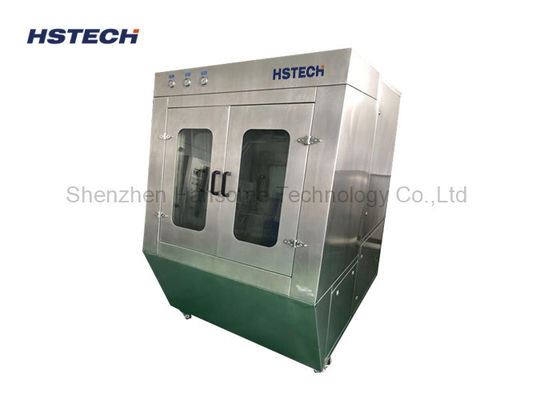

28KW PCB Ultrasonic Stencil Cleaner Hot Air Drying Stepper Motor Control

28KW PCB Ultrasonic Stencil Cleaner Hot Air Drying Stepper Motor Control

  • 28KW PCB Ultrasonic Stencil Cleaner Hot Air Drying Stepper Motor Control
28KW PCB Ultrasonic Stencil Cleaner Hot Air Drying Stepper Motor Control
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-610
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 20~30 work days
Payment Terms: T/T, Western Union
Supply Ability: 50pcs per month
Contact Now
Detailed Product Description
Product Name: Water-based Stencil Cleaner Usage: Cleaning Stencils / PCB
Machine Type: High Pressure Cleaner Power(w): 28kW
Condition: New Fuel: Electric
Warranty: 1 Year After-sales Service Provided: Online Support
High Light:

pcb cleaning equipment

,

smt stencil cleaning machine

Water Based Solvent Automatic Cleaning Process SMT Stencil Cleaner Machine



Introduction



Water based stencil cleaner is used the water based solvent as the cleaning liquid, apply high pressure spraying cleaning and ringsing,

also hot air drying to fulfill all the process, mainly for cleaning stencil, plastic mesh,PCB/PCBA, squeegee etc.



Features



1. Used to clean stencils, PCBA, etc, with the water-based solvent, adapt high pressure spray system.

2, The whole process including cleaning, ringing and drying, cleaning process: cleaning chemical isolation - rinsing (open loop/closed loop) - drying.

3, 360 degree rotation spraying cleaning, no blind cleaning area.

4. Double liquid tank, equipped with heating system, implementation needs cleaning-rinsing-drying.

5, Window cleaning pressure can be adjusted independently, process is more wide, solve the SMT stencil tension in the process of high pressure cleaning problem.

6. Liquid and the pump pressure can be displayed through the panel pressure gauge, feedback the equipment running status in time .

7. Drift lotion resistivity monitoring, ensure the cleanliness, the resistivity can be set up, meet the demand of different halftone technique.

8, Touch screen panel control, usind stable and reliable imported brand color touch-screen, can pre-setting solvent temperature, cleaning time, rinse times/time, rinse temperature, drying time, drying temperature, electrical conductivity monitoring parameters and so on.

9, Stepper motor control spray lance reciprocating spraying, can choose spraying area.

10. Integral high quality stainless steel fuselage, strong and durable, anti-acid, alkali cleaning fluid, anti-rust, etc

11. Water circulation system: Independent cleaning liquid tank,rinsing liquid tank equipped with stainless steel precision filter, according to need to replace filter element to ensure cleaning performance is better.

12, Automatic drainage system, convenient management and maintenance.



Specification



Model HS-610
Cleaning method Double side 360 degree high pressure spraying cleaning,ringing
Drying method High pressure hot air drying
Application stencil size Standard 29 inch, or customized
Cleaning fluid capacity 50L*2PC(max)
Best liquid usage 40L*2PCS
Clean and risn method Left-right moving high pressure liquid spray cleaning
Drying method High pressure hot air(Optional super models)
Clean time 2-5 Min
Cleaning fluid separation time 40seconds
Rising time 2-5 Min
Rising times 1~99times
Drying time 2-5 min
Cleaning liquid recycling 1μm (Micro filter::rosin, solder paste, flux and pollutants)
Rinse liquid emission filter 5μm (Micro filter: rosin, solder paste, flux and pollutants)
Liquid heating temperature room temp~60℃
Noise Less than 50 decibels
Range of resistivity tester 0~18MΩ
DI water supply 30~60L/min
DI water pressure ≤0.4Mpa
DI water Gateway connecting pipe 1 inch
Air supply 0.45Mpa~0.7Mpa
Net weight 500KG
Air outlet size Φ124(W)×30mm(H)
Machine 1600mm(L) ×1160mm(W) ×1850mm(H)
