| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SL331A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, foam inside |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Product Name: | Air Blowing Screw Lock Machine | Motor: | Closed Loop Motor And Step Motor |
|---|---|---|---|
| Axis: | 3 Axis | Suitable Screws: | M1.0-M5.0 |
| Weight: | 55kg | Material: | Titanium And Titanium Alloy |
| High Light: | screw tightening robot,screw locking tightening machine |
||

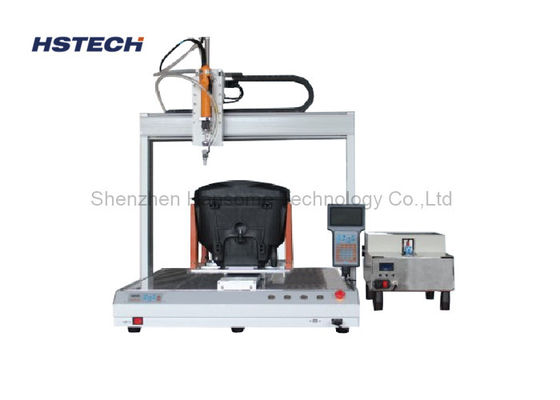

Air Blowing Single Head Screw Locking / Fastening Machine with Teach Pendant
Introduction
This air bolwing type screw fastening machine is a new deveoped screw locking machine, it used the air blowing uninterrupted feeding, which is much higher efficiency than the aspirating screw lock machine.
Features
1, Air blowing type feeding, more efficiency.
2, Desktop and visible operation, can connect the automatic production line.
3, Convenient and friendly document teaching and editing functions, and provide a variety of advanced editing functions such as batch modification, array copying, graphic shifting, graphic zooming, automatic rounding, etc.
4, Suitable for screws specification M1-M5.
5, Widely application, can used to many industry, like electronic production, top, LED light, vehicle electronics, toyes, power supply,
PC keyboard, etc.
6, Support CAD, corelDRAW format file input.
Specfication
| Model | HS-SL331A |
| Product name | Air blowing type screw lock machine |
| Power supply | AC110V/220V, 50/60Hz |
| X/Y/Z working range | 300/300/100mm |
| XYZ speed | X/Y axis: 1-600mm/s, Z axis: 300mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Motor | X/Y axis closed loop motor, Z axis step motor |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | HIWIN(Taiwan brand) |
| Photoelectric switch | (Germany brand) |
| Cylinder | AirTAC |
| Suitable screws | M1 - M5 |
| Machine size | 520*585*645mm |
| Gross weight | 55kg |
