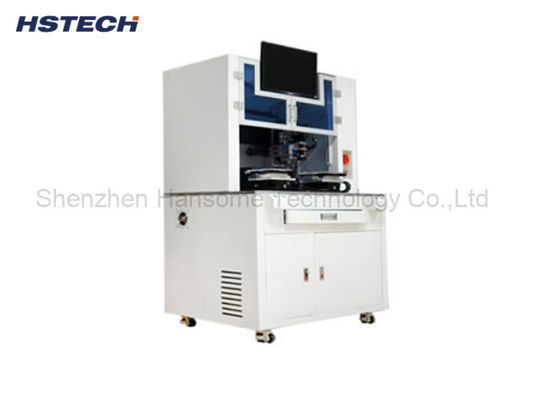

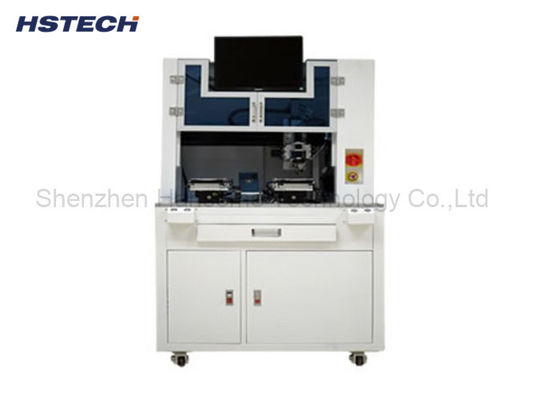

Visual Detection Screw Fastening Machine Built In CCD Carema And Panasonic Motor

Brand Name:	HSTECH
Model Number:	HS-VS810
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Visual Detection Screw Fastening Machine

Other Name:

CCD Screw Locking Machine

Axis:

4 Axis

Guide:

Hiwin

CCD:

Industrial Camera From Germany

Communication:

MES System

Packaging Details:

Wooden package, foam inside

Supply Ability:

50pcs per month

Highlight:

screw tightening robot

screw locking tightening machine

Product Description

Visual Detection CCD Carema 4 Axis Screw Fastening Machine with Panasonic Motor

Introduction

This machine is a 4 axis high performance CCD automatic screw fastening machine, using industrial camera for positioning, work with LED source to achieve the accurate position, mainly used for locking the small size screws. This machine using HIWIN P-Class KK slide module and Panasonic servo motor, and the optoelectric parts all using schneider and omron brand to make the whole machine stable.

Application

This CCD auto screw locking machine is widely used for locking the casing of smart phone, power adapter, PCB electronic products, batteries, small household applicance, wifi routers, power supply, toy wheels, and other automotive parts and small electronic products.

Specfication

Model	HS-VS810
Product name	Auto CCD screw fastening machine
Power supply	AC380V
Working axis	4 axis
Screw diameter range	0.8-2.0mm
Repeat accuracy	±0.02mm
Motor	Panasonic servo motor
Linear guide/screw	HIWIN brand KK module
Control card	LEADSHINE brand high performance control card
Screw driver	Vauguard
Camera	Germany brand BASLER industrial camera
Lens	High resolution high performance lens
Light source	Industrial LED source
Vacuum generator	AIRTEC
Feeder	NSRI from Japan
Optoelectronic parts	Schneider / Omron
Machine size	9307801700mm
Gross weight	350kg
