PLC Contro Inteligent Solder Paste Thawing Machine Warm Up Machine With Printing Function

Name: PLC Contro Inteligent Solder Paste Thawing Machine Warm Up Machine With Printing Function
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-SP-10N
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-SP-10N
MOQ:	1 PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	100 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

Solder Paste Thawing Machine

Rated Power Supply:

AC220V / 60Hz

Number Of Working Stations:

Emergency Battery Duration:

Up To 8 Hours After Power Failure

Operation Mode:

LCD Touch Screen Control

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

100 PC/Month

Highlight:

PLC control solder paste thawing machine

intelligent solder paste warm up machine

solder paste machine with printing function

Product Description

PLC Controlled Intelligent Solder Paste Thawing Machine

Professional 10-station warm-up machine with printing function for solder paste and red glue constant-temperature rewarming.

Product Overview

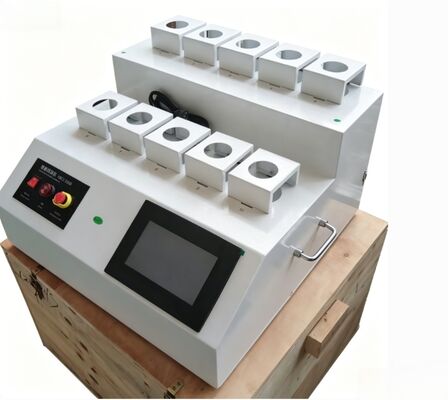

The 10-Station Intelligent Solder Paste Thawing Machine (Model HS-SP-10N) is a professional SMT peripheral device designed for solder paste and red glue constant-temperature rewarming. It is widely used in PCB assembly, electronic manufacturing, SMT production lines, semiconductor packaging, and other industrial applications.

Unlike traditional manual natural thawing, this machine uses intelligent program control to achieve standardized, uniform, and traceable solder paste rewarming. It effectively prevents quality issues such as moisture condensation, solder balling, solder bursting, and BGA/chip voids caused by improper manual thawing.

Working Principle

Solder paste stored in refrigerators is significantly colder than ambient temperature. Direct use without proper rewarming causes condensation inside the solder paste container, damaging flux activity. This leads to solder splashing, solder bead generation, component damage, and high void rates in BGA and chip components during reflow soldering.

Traditional manual thawing relies on worker experience with inconsistent results, leading to unstable soldering quality. Our intelligent solder paste thawing machine simulates natural constant-temperature rewarming, gradually restoring solder paste to optimal active state for excellent printing performance, slump resistance, and release characteristics.

Key Features & Advantages

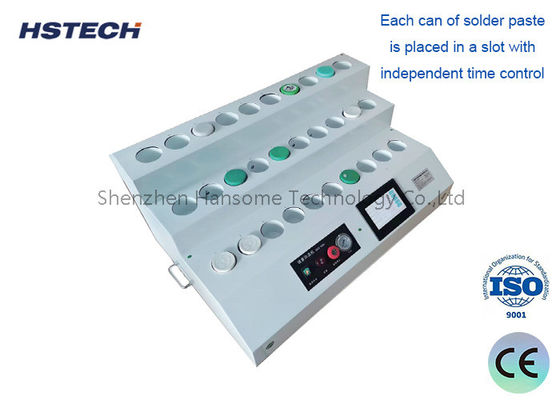

10 Independent Working Stations - Simultaneous rewarming of 10 cans of 500g solder paste with individual time settings
Intelligent Touch Screen Control - LCD touch screen with MCU & PLC integrated control system
FIFO Management & Safety Protection - First In First Out function with password verification for material access
No Compressed Air Required - Plug-and-play design for easy installation in any workshop area
Emergency Backup Battery - Supports up to 8 hours of continuous operation after power failure

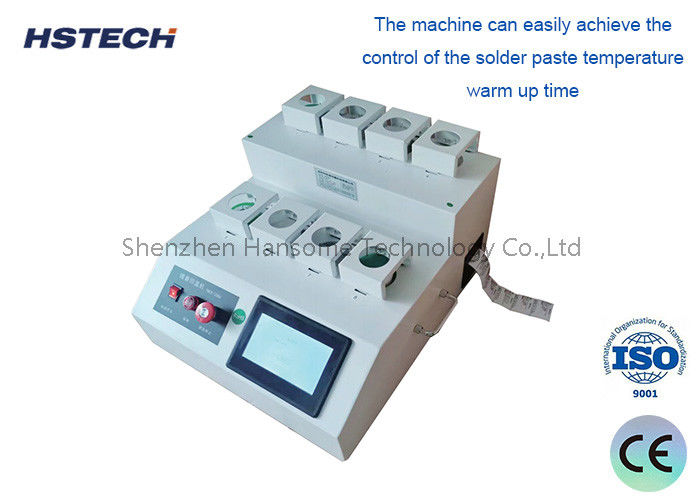

Data Traceability & Printing Function - Integrated thermal printer and data memory for production quality records
Multi-Material Compatibility - Works with lead-free solder paste, leaded solder paste, and SMT red glue
Stable Quality & Defect Reduction - Maintains optimal flux activity, reduces BGA and chip void rates
High Efficiency & Production Planning - Standardized operation replaces inefficient manual thawing

Technical Specifications

Parameter	Specification
Model	HS-SP-10N
Rated Power Supply	AC220V / 60Hz
Number of Working Stations	10
Operation Mode	LCD Touch Screen Control (MCU + PLC)
Applicable Specification	500g standard solder paste can
Emergency Battery Duration	Up to 8 hours after power failure
Machine Dimension (L×W×H)	630 × 535 × 330 mm
Net Weight	28KG
Built-in Configuration	Thermal Printer + Data Memory
Supported Material	Various solder paste / SMT red glue

Application Scenarios

SMT production line, PCB circuit board assembly, electronic component mounting, semiconductor packaging, automotive electronics manufacturing, medical electronics, communication equipment factory, and other precision electronic manufacturing industries.
