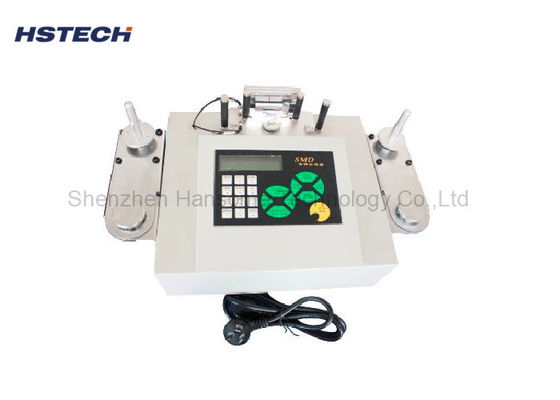

Digital LED Display SMD Component Counter With RS232 Connector AC100/220V

Digital LED Display SMD Component Counter With RS232 Connector AC100/220V

  • Digital LED Display SMD Component Counter With RS232 Connector AC100/220V
Digital LED Display SMD Component Counter With RS232 Connector AC100/220V
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-158
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 7~10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: SMD Chip Counter Motor Brand: Panasonic
Motor Power: 6W Plastic Reel Size: 7-13 Inch
Error: 0 Package: Carton Box With Foam Protect
Highlight:

smd chip counter

,

smd parts counter

Power Supply Digital LED Display SMD Components Counter With RS232 Connector



Introduction



SMD Chip Counter is used for counting the quality of the SMD components in tape/reel packing. It's a kind of efficient auxiliary equipment for material management.



Features



1. AC100/220V power supply option.
2. Can connect the barcode Scanner and label printer,
3. Easy operate,designed to prevent tape dropping,minimizing risk of damage to tapes.
4. Count forward and reverse ,double-check feature ensures accuracy,built-in memory allows you to preset count quantity.
5. The counter use drafting LCD screen. Small size, light weight, easy to carry
6. Use patent reflector,humanized operation platform.
7. Optical fiber sensor detect leak ,motor will stop working when detected leak.



Specification



Model: HS-158
Voltage: AC220, 50/60Hz
Power Supply: 15W
Motor Brand: Panosonic 6W AC motor
Counting Range: “-100000~100000"
Pitch Size: 2,4,8,12,16,24,32,44,56,72,88 m
Plastic reel size: 7-13 inch
Universal Products Suitable for all tape components
Error 0
Product Size: 450*270*180mm
Package size 470*280*190mm
Gross Weight: 9.5kg
