| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-PC800 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Product Name: | SMD Components Counter | Other Name: | SMD Chip Counter |
|---|---|---|---|
| Power Supply: | AC110V,AC220V, 50/60Hz | Wattage: | 30W |
| Product Size: | 450*270*180mm | Weight: | 8kg |
| High Light: | smd chip counter,smd parts counter |
||

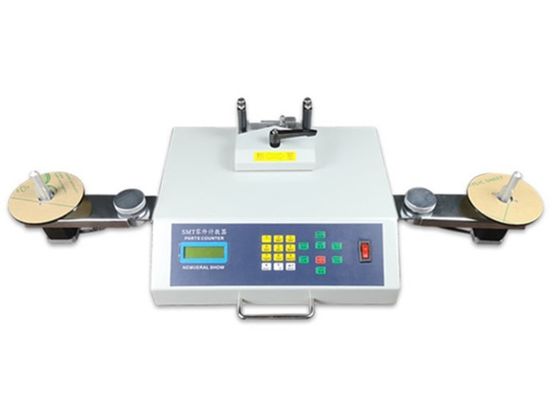

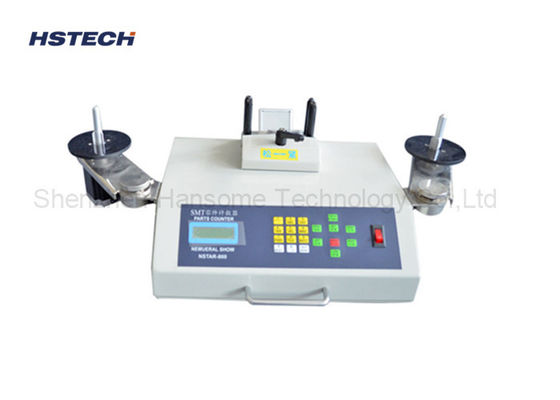

Zero Error 30W Suitable for 7-13 Inch Reel SMD Components / Chip Counter
Features
1.Easy to eperate,both positive and negative can be counted,zero error.
2.Able to preset the parts number,convenient for parts counting,feeding and picking up.A
3.Counting speed can be ajustable,improve the efficiency,meet the different size tape.
4.Optional label printer and barcode scanner.
5.The counter use drafting LCD screen. Small size, light weight, easy to carry
6.Use patent reflector,humanized operation platform.
7. Fully control the components in the factory, avoid mistakes.
Specification
| Model | HS-PC800 |
| Power supply | AC110V,AC220V, 50/60Hz |
| Wattage | 30W |
| Counting time | 19 seconds to 2 min |
| Counting range | -59999~59999 |
| Pitch size | 2,4,8,9,10,12,16,24,32mm |
| Tape width | 8,12,16,24,32,44,56,72,88 m |
| Plastic reel size | 7-13 inch |
| Application | Suitable for all components |
| Product size | 450*270*180mm |
| Package size | 460*280*190mm |
| Gross weight | 8kg |
