| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-250BLD |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~10 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | Button Control PCB Loader | Condition: | New |
|---|---|---|---|
| Power Supply: | AC110V/220V,50/60Hz | PLC: | PANASONIC |
| Contorl Method: | Button | Warranty: | 1 Year |
| High Light: | smt assembly equipment,pcb loader and unloader |
||

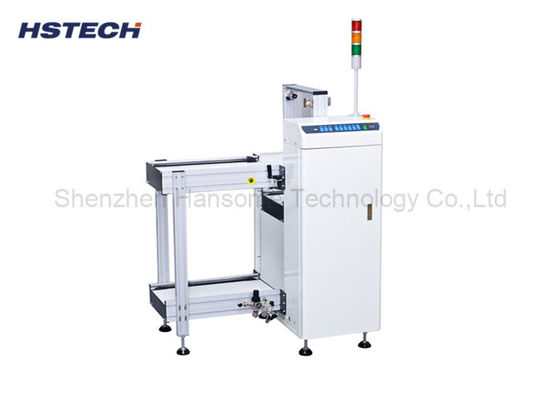

Tower Light Display PCB Handling Equipment SMEMA PCB Loader Unloader
Application
This machine is used for the start of SMT production line, by pusing the pcbs out of the magazines to the conveyor to downstream machine.
Specification
| Model | HS-250BLD | HS-330BLD | HS-390BLD | HS-460BLD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Size | S | M | L | LL |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 920±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches | 1-4(10mm step) | |||
| Communication | SMEMA | |||
| Machine dimension | 1330*765*1250 | 1650*845*1250 | 1800*910*1250 | 1800*970*1250 |
| Weight | Approx 190kg | Approx 210kg | Approx 224kg |
Approx 236kg |
Features
1, True color touch screen control
2, Panasonic PLC
3, Magazine capacity: 3 pcs
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal

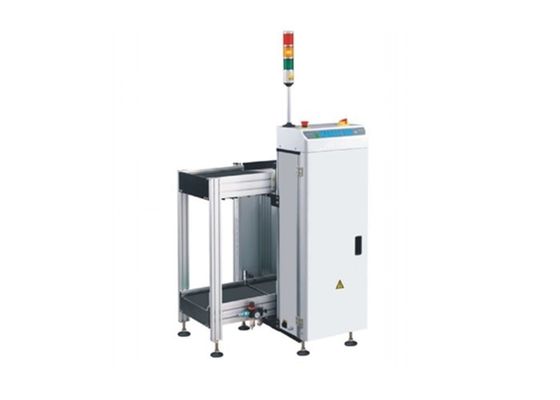

Operation diagram
