| Product Name: | Button Control PCB Unloader | Power: | AC110V/AC220V,50/60Hz |
|---|---|---|---|
| PLC: | Panasonic | PCB Width: | Adjustable |
| Transport Belt: | ESD | Pcb Direction: | L-R Or R-L(customized) |
| Highlight: | smt production line equipment,pcb loader and unloader |
||

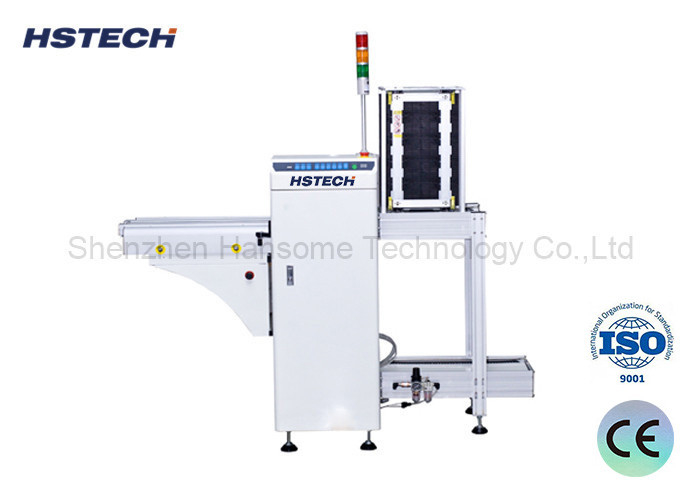

PLC Control PCB Unloader Multiple Magazines Press SMT Production Line Equipment
Introduction
This device is mainly used to automatically collect PCBS (printed circuit boards) into storage boxes or containers at the end of SMT (surface mount technology) production lines.
Features
1. High-quality stainless steel construction: The unit is made of high-quality stainless steel to ensure excellent durability and stability in a variety of working environments.
2. Advanced PLC control system: Equipped with advanced PLC (Programmable logic controller) system, to achieve accurate control and efficient operation, to ensure the smooth progress of the production process.
3. Three-magazine design: The device has the loading capacity of three magazines, greatly improving work efficiency and flexibility, ensuring continuity and stability in the production process.
4. Panasonic PLC technical support: The use of Panasonic brand PLC technology, with its excellent reliability and stability, to provide a strong technical support and guarantee for the device.
5. Adjustable pitch setting: Users can adjust the pitch setting according to actual needs in order to better adapt to different working environments and operating habits.
6. Automatic magazine change function: The device is equipped with automatic magazine change function, which reduces the need for manual intervention and further improves the production efficiency and automation level.
7. Specially designed gas circuit: The unique gas circuit design ensures the smoothness and stability of the PCB during transmission, effectively reducing the risk of damage.
8. Tower light status display: Through the tower light display machine status, the operator can intuitively understand the operation of the device, easy to find and deal with problems in time.
9. Support SMEMA signal: The device is compatible with SMEMA signal standards to facilitate seamless docking and collaboration with other production equipment.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | 3 pcs | |||
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine change over time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Step pitch selection | 1-4(10mm step pitchs) | |||
| Communication | SMEMA | |||
| Machine dimension | 1330*765*1250 | 1920*845*1250 | 2160*910*1250 | 2160*975*1250 |
| Weight | Approx 230kg | Approx 260kg | Approx 290kg |
Approx 320kg
|
