| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-330ULD |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 10~12 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Automated PCB Unloader | Voltage: | AC110V/AC220V |
|---|---|---|---|
| PLC: | MITSUBISHI Brand | PCB Width: | Adjustable |
| Transport Belt: | ESD | PCB Direction: | L-R Or R-L(optional) |
| High Light: | smt assembly equipment,pcb loader and unloader |
||

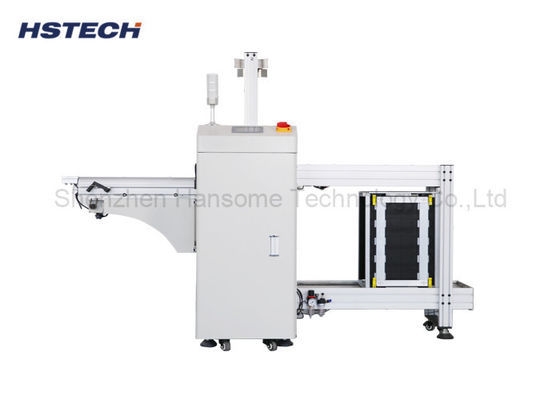

Air Pressure Supply 12 Months Warranty PCB Unloader Board Handling Equipment
Introduction
This units used to collect the PCBs into the magazines at the end of SMT line.
Features
1, Durable designed structure, sheet metal materials.
2, PLC and touch screen Control system.
3, Multiple magazines available.
4, Air pressre filter equipped.
5, Selective pitch settings
6, Automatic magazine change-over.
7, Special designed gas circuit for transmit PCBs smoothly and stably.
8, Tower light display for machine status
9, SMEMA Signal.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | 3 pcs | |||
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine change over time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Step pitch selection | 1-4(10mm step pitchs) | |||
| Communication | SMEMA | |||
| Machine dimension | 1330*765*1250 | 1920*845*1250 | 2160*910*1250 | 2160*975*1250 |
| Weight | Approx 230kg | Approx 260kg | Approx 290kg |
Approx 320kg
|
