| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,RoHS |
| Model Number: | HS-680 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case, with foam |
| Delivery Time: | 15~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Name: | Auto Squeegee Cleaning Machine | Usage: | Cleaning Squeegees After Screen Printing |
|---|---|---|---|
| Cleaning Tank Capacity: | 50 Liter (max) | Best Liquid Capacity: | 40L |
| Cleaning Time: | 1-15 Min(adjustable) | Drying Time: | 1-15 Min(adjustable) |
| Highlight: | circuit board cleaning equipment,smt stencil cleaning machine |
||

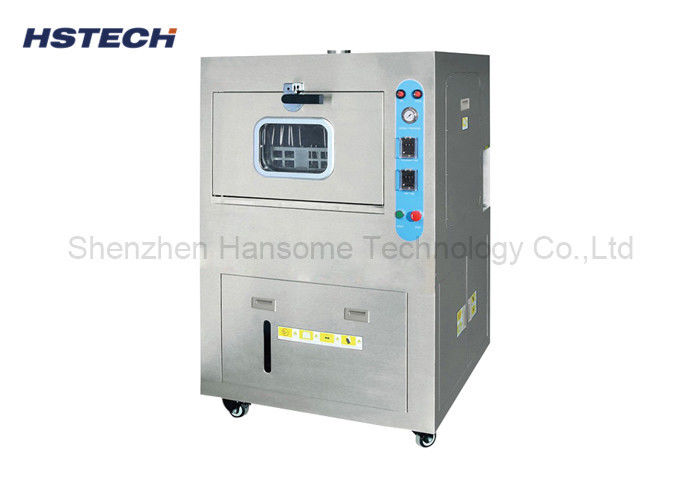

Powered By Air Pressure 304 Stainless Steel SMT Squeegee Cleaning Machine
Description
This machine is powered by compressed air and is a new, high performance, all-pneumatic cleaning device.
Manually put the squeegee / PCB board into the cleaning chamber, adjust the cleaning and drying time, press the start switch, the squeegee/PCB board will be automatically clean and dry, and will automatically stop running when the set time arrives.
The door opening time is automatically reset to realize the next work flow, which is convenient for the operator to clean the operation and greatly improve the production efficiency. Among them, the liquid used for cleaning can be recycled in the machine, which greatly reduces the consumption and cost of the liquid, and the working time is greatly shortened, and the operator does not need to contact the liquid and does not harm the human body. The power source used in this machine is compressed air, which does not require any input of electric power, so that its safety performance reaches 100%.
There is no requirement for liquid, all control components use imported brands to make the machine run stable and last for a long lifespan.
Features
1, Completely using compressed air as energy, no electricity, no fire hazard
2, Closed-loop cleaning: there will be no leakage of gas or liquid; it will help improve the working environment.
3, High precision 3-stage filtration system: effectively prolongs the life of cleaning agent recycling
4, Dedicated to cleaning squeegee,PCB and PCBA. etc
5, Large quantity of cleaning per batch, improve production efficiency and save consumables
6, The equipment adopts precision filtration system
7, Cleaning and air drying process to ensure cleanliness
8, Liquid pressure can be displayed by the hydraulic gauge on the operation panel
9, Independent air exhaust device design makes the liquid consumption lower. The compressed air is used as the energy source. No electricity, no fire hazard.
10, The whole body is made of 304 stainless steel material, which is durable, acid-resistant and alkaline.
11, One-button operation, easy to operate, easy to clean and dry
Specification
| Model | HS-680 |
| Product name | Squeegee cleaning machine |
| Squeegee cleaning qty | 10-20 pcs each time |
| Machine metarial | Stainless steel, anti-fire, explosion-proof |
| Power | Pneumatic |
| Application | For cleaning squeegees after screen printing |
| Cleaning basket size | 560*600*600mm |
| Cleaning solvent capacity | 50L(max) |
| Best cleaning fluid using volume | 40L |
| Cleaning method |
Rotary double side pressure injection and high pressure air |
| Cleaning time | 1~15 Min(adjustable) |
| Drying time | 1~15 Min(adjustable) |
| External air supply | 0.45Mpa~30Mpa |
| Max squeegee cleaning size | 600mm |
| Air letout size | φ120*240m |
| Filter system | 3 level filter(10um,5um,1um) |
| Weight | 260kg |
| Machine dimension | 1000MM(L)*1000MM(W)*1760MM(H) |
