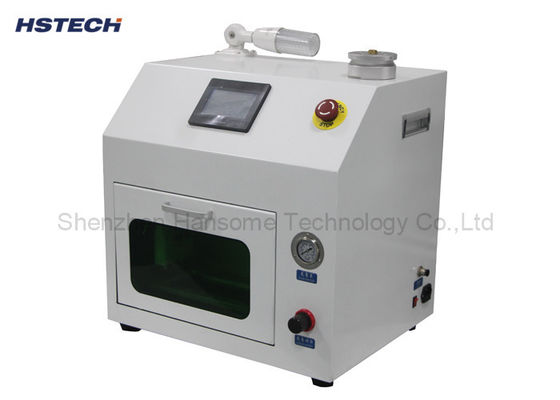

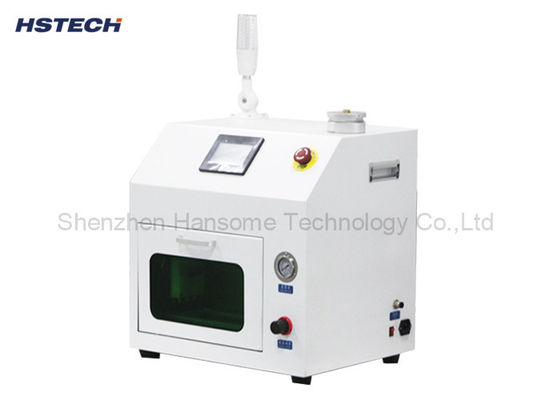

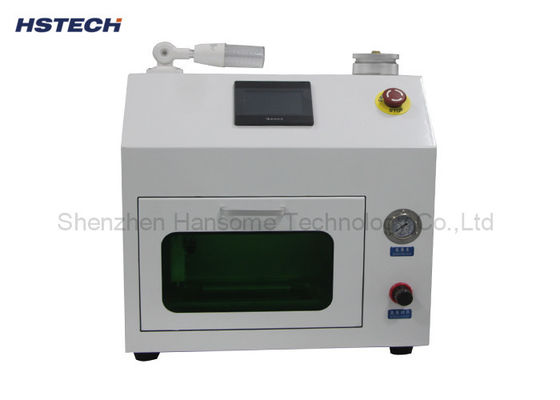

PLC Touch Screen Green Color Cover SMT Nozzle Cleaner For 01005 0201 Components

PLC Touch Screen Green Color Cover SMT Nozzle Cleaner For 01005 0201 Components

PLC Touch Screen Green Color Cover SMT Nozzle Cleaner For 01005 0201 Components
video
PLC Touch Screen Green Color Cover SMT Nozzle Cleaner For 01005 0201 Components
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~10 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: SMT Nozzle Cleaner Voltage: Single Phase, AC100V/220V
Nozzle Tray: Customized Cleaning Capacity: Max 30 Pcs Nozzles
Control Panel: Touch Screen(English) Machine Size: 500*440*530mm
Highlight:

pcb cleaning equipment

,

circuit board cleaning equipment

Data Sheet Nozzle Cleaning Machine HS-800.pdf



PLC Touch Screen Green Color Cover SMT Nozzle Cleaner for 01005 0201 Components



Introduction



HS-800 nozzle cleaning machine can automatically complete the cleaning and drying process, it adopts multiple spraying nozzles spraying cleaning method, uses fluid mechanics to shred water, produces very strong water mist, forms powerful kinetic energy at the speed of sound and sprays on the nozzle, forming a continuous shape above the nozzle, clean the dirty on the surface and inside of the nozzles, it mainly used for cleaning small components, such as 0603,0402,0201,01005 and high precision nozzles.



Cleaning Principle



High-pressure jet technology: A, fine water mist particles, continuous pressure to reduce water, resulting in 3-10um particles of water mist to clean the dirt into the inner wall of the small nozzle aperture.



Pulsed power: B, Sound velocity (V=360m/s) forms a powerful pulsed power injection onto the nozzle, which can reach 30 pulse frequency per second, forming a continuous impact force above the nozzle to be cleaned. Smash the surface and internal dirt for cleaning purposes.



Specification



Model HS-800
Voltage Single phase, AC110-220V, 50H60Hz
Air pressure 0.5~0.6Mpa
Air source Pure compressor air
Control mode PLC+Touch Screen
Jet pressure ≤0.4MPa​
Air wastage Under 280NL/min
Water source​ D.I water
Water storage 800cc
Water consumption 300cc/hrs
Admission pipe/Drainpipe​ φ8/φ6
Nozzle tray Default 30 nozzles
Nozzle size 01005, 0201-2512inch
Noise 35-60dB



Product Features



1, Elegant appearance, high precision 304 stainless steel machine body.

2, Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving.
3, Suitable for cleaning all kinds of nozzles, also have good cleaning performance for cross type, I-shaped, and special shape nozzles.
4, The atomized water flow equipped with supersonic spraying cleaning to completely clean the dirt impurities which the ultrasonic waves can not clean it all, ensure the clearness even very small nozzle holes.
5, Easy operation, English is available.
6, Inspection window which can watch the whole cleaning process.
7, Using D.I water as cleaning solvent,not harmful for all types of nozzles and reflector panel.
8, Touch screen + PLC distributed control, stable and reliable performance



PLC Touch Screen Green Color Cover SMT Nozzle Cleaner For 01005 0201 Components 0

Machine size



PLC Touch Screen Green Color Cover SMT Nozzle Cleaner For 01005 0201 Components 1PLC Touch Screen Green Color Cover SMT Nozzle Cleaner For 01005 0201 Components 2

Nozzle Tray



PLC Touch Screen Green Color Cover SMT Nozzle Cleaner For 01005 0201 Components 3

PLC Touch Screen Green Color Cover SMT Nozzle Cleaner For 01005 0201 Components 4
