Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-M535
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 25~80usd/pc
Packaging Details: Carton package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Product Name: PCB Storage Magazine Dimension: 535*460*565mm
Type: Anti-static Material: Metal And Plastic
Installation: Manual Storage Capacity: Max 50pcs
Condition: New Warranty: 1 Year
Highlight:

smt production line equipment

,

pcb loader and unloader

Anti-static High Temperature Resistant ESD Magazine SMT Storage Holder PCB Rack



Introduction



This PCB magazine racks are widely used in the PCB loader and unloader machine, suitable for transport, store and manage the PCBs in the PCB fabrication factories, it's a smart PCB storage system, the magazines take small room, but it can be stackable and store the PCBs convenient and ordered. The magazines are healthy products, which is Non-toxic, odorless, moisture-proof, corrosion-resistant, also high temperature resistance, it play a big role in the warehouse and production spot.



Specification



Overal size 535*460*565mm,also has other options
Suitable PCB size 50*50~530*390mm
PCB storage capacity Max 50pcs
Side guid slot Depth 3.0mm, width 5.0mm, pitch 10mm
Surface resistance 105Ω-109Ω
Heat-resistance  80 °C/120°C/200°C
Width adjustment Gear Tracker / clips
Top and bottom base panel Metal material
Type Anti-static
Single weight 5kg



Features



1, This product is used for PCB loader and unloader machine, collect,transport and store the PCBs in the warehouse or production room.

2, Top and bottom part using drable metal material panel, ensure the whole structure stable.

3,, The whold rack is anti-static design, max can store 50pcs PCBs.

4, Width can be adjusted via gear and fixed by the clip.

5, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.

6, Stable structure, wont bent during operation, the racks also high temperature resistance.

7, Easy to install and disassembly, convenient for replacement and maintenance.

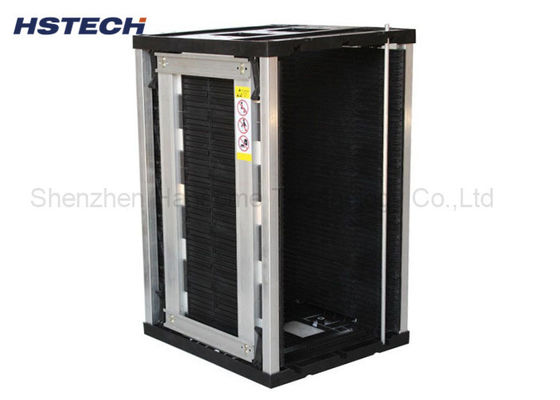

ESD Magazine SMT Storage Holder Material Handling Equipment PCB Rack Anti Static 0

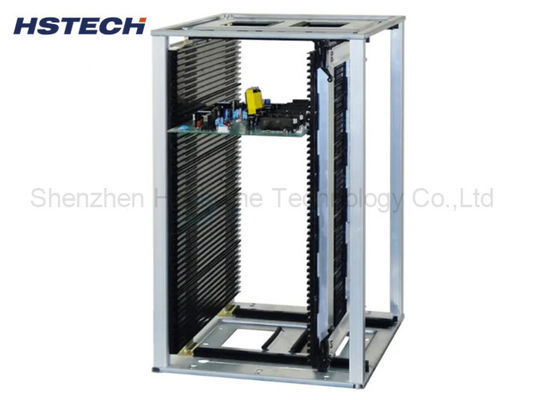

ESD Magazine SMT Storage Holder Material Handling Equipment PCB Rack Anti Static 1

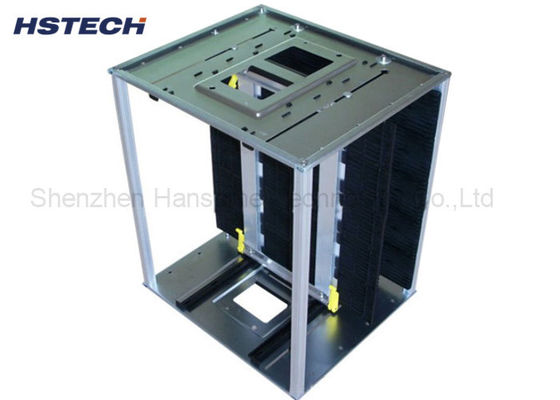

ESD Magazine SMT Storage Holder Material Handling Equipment PCB Rack Anti Static 2

ESD Magazine SMT Storage Holder Material Handling Equipment PCB Rack Anti Static 3
