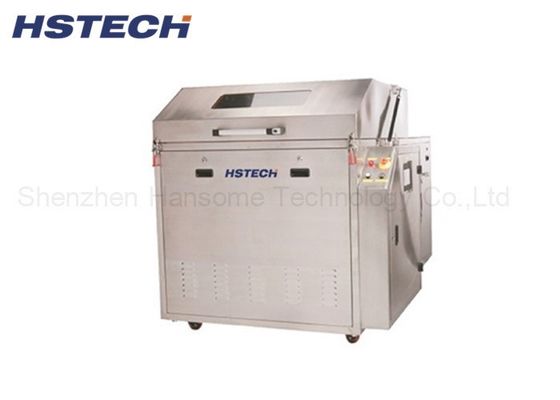

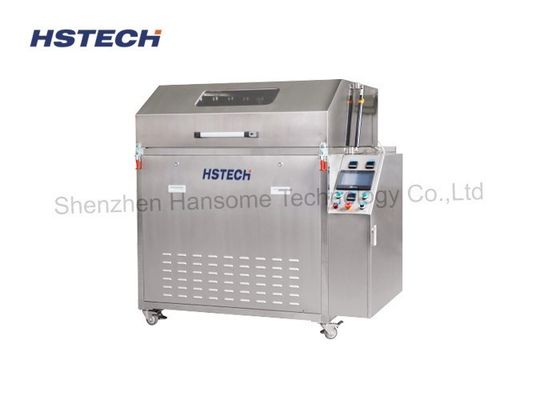

PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner

PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner
PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner

Large Image :  PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-630
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month

PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner

Description
Product Name: Automatic Solder Pallet Cleaning Machine Other Name: Automatic Condenser Cleaner
Control: PLC+Touch Screen Function: Cleaning,Rinsing And Drying
Cleaning Method: Spraying Cleaning Cleaning Solvent: Water-based Slovent
Machine Dimension: 2000*1400*1500mm Weight: 600kg
High Light:

pcb cleaning equipment

,

circuit board cleaning equipment

PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner



Introduction



The equipment Model-HS-630, we called it automaic solder pallets cleaning machine, it used for cleaning the pallets, trays,jigs, condensers,etc of the SMT equipments, clean the flux, oil, dust and other dirty on the surface and reuse them with high clearness.

The machine has 3 functions, cleaning, rinsing, drying, the pallets are well kept in a big cleaning basket, the machine will run with 720 degree rotation spraying cleaning and ringsing, after that, the machine will dry the pallets, the whole process will complete automatically.

After setted the parameters, press the "start" button, wait till all the process finished, then take the pallets out.



Features



1, The machine body whole SUS304 stainless steel, durable and stable, make sure the machine precision at the first step.

2, The machine with cleaning, rinsing, and drying function combination.

3, 720degree rotation no dead corner cleaing and ringsing.

4, Cleaning basket can clean many sets pallets at one time, the basket can be customized.

5, Suggestted using the water-based solvent as the cleaning liquid.

6, The machine is PLC and touch screen control, one button operation, fully automatic.

7, With 3 levels filter system, cleaning solvent can reuse repeatly.

8, Observation window which can monitor the whole process.

9, Equipment running with low energy consumption, low noise, no pollution, energy save and environmental protection, the whole structure with stainless steel.



Specification



Model HS-630
Dimension

2000*1400*1500mm

Cleaning method High pressure spraying 720 degree rotation cleaning
Rinsing method High pressure spraying 720 degree rotation rinsing
Drying method Air kinfe, 720 rotation drying
Control  Touch screen

Clean Basket diameter

1000mm

Part Max height

480mm

Basket loading

100 KG

Pressure scope

3-6 KG

Clean tank capacity

60L

Spraying pressure

5-8 KG

Recommend clean solvent

Water-based clean solvent

Application For cleaning wave soldering pallets, reflow soldering pallets, condenser, trays, jigs.
Machine weight 600KG
Package Wooden case



Cleaning Performance



PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner 0



PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner 1



PLC Control Aqueous Auto SMT Wave Solder Pallets Condenser Spraying Cleaner 2
