| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-330BC |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 12~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Surface Dust Cleaner | Power Supply: | AC100-230V |
|---|---|---|---|
| Air Pressure: | 0.4~0.6Mpa | Function: | Clean Dust, Static On The PCB Surface |
| Machine Weight: | 90kg | Condition: | New |
| High Light: | pcb cleaning equipment,circuit board cleaning equipment |
||
SMEMA Signal Sticker Roller Static Electricity Dust PCB Surface Clean Machine
Machine introduction

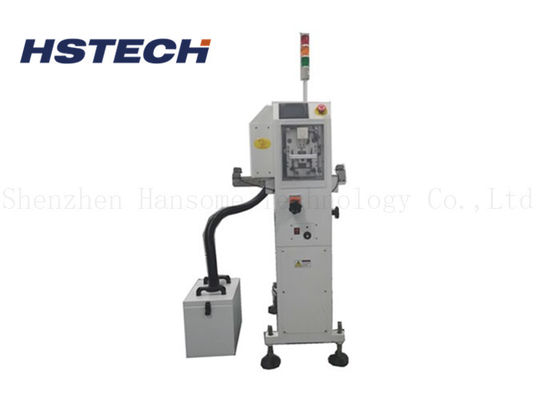

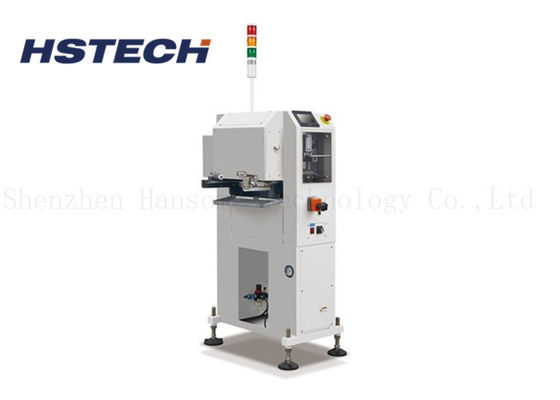

This automatic PCB surface cleaning machine used before the solder paste screen printer or the conformal coating machine, it used for cleaning the fine chips, static electricity, dust, fibers, hair, skin debris, metal particles and other objects on the surface of PCBs. It's a perfect equipment which ensure the totally clean of the PCB, eliminate the false welding, empty welding, lifting, and skewing in advance, produce high quality products. The machine use the sticker roller and brush to clean the dust, static electricity of the surface of the PCB, multiple cleaning process, with great performance.
Features
1, SUS304 stainless steel machine body, stable and durable.
2, PLC and touch screen control system.
3, Perfect static cleaning system, using the high quality Japan brand Keyence Ion wind bar,high-speed anti-static spiral brush, and the vacuum device.
4, Double sticker roller to clean the dust on the PCB surface.
5, Draw-out design for easy changing of adhesive rollers, maintenance is simple.
6, The foreign matter adsorbed by the dust removal roller can be recovered by the dust removal roller to eliminate the secondary pollution to the substrate.
7, Touch screen display in both English and Chinese language, operation convenient and simple.
8, SMEMA signal compatible.
Specification
| Model | HS-330BC | HS-460BC | ||
| PCB dimension | (50*50)~(460*330) | (50*50)~(530*460) | ||
| Machine dimension | 555*900*1350 | 555*1030*1350 | ||
| Weight | 90kg | 110kg | ||
| PCB thickness | 0.5~3.2mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| ESD brush | Top 1 pc |
| Dust remove sticker roller | top 2 pc |
| Adhesive roller | Top 1 pc |
| Vacuum device | 1 pc |
| Ion wind bar brand | Best quality Japan brand Keyence |
| If with dust collector | Yes |
| Conveyor rail adjustment | Crank wheel |
| Fixed rail | Front fixed |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
