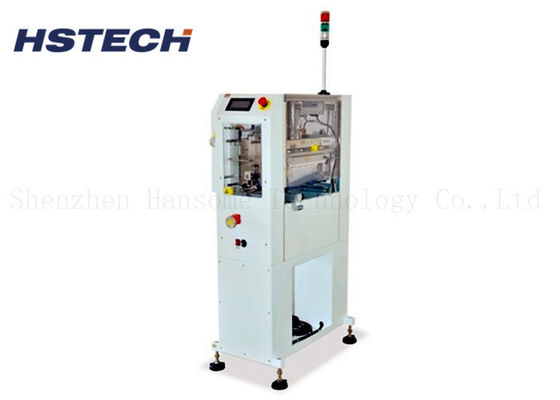

PCB Surface Dust Static Electricity Cleaner Equipment ESD Brush 1 year Warranty

PCB Surface Dust Static Electricity Cleaner Equipment ESD Brush 1 year Warranty
PCB Surface Dust Static Electricity Cleaner Equipment ESD Brush 1 year Warranty

Large Image :  PCB Surface Dust Static Electricity Cleaner Equipment ESD Brush 1 year Warranty

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-330BC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 12~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

PCB Surface Dust Static Electricity Cleaner Equipment ESD Brush 1 year Warranty

Description
Product Name: PCB Surface Dust Cleaner Other Name: PCB Surface Brusher
Power Supply: AC100-240V, 50/60Hz PCB Thickness: 0.5~3.2mm
Brush: ESD Dust Collector: Yes
Ion Wind Bar: Keyence(Japan Brand) Warranty: 1 Year
High Light:

pcb cleaning equipment

,

circuit board cleaning equipment

SMT Production Inline PCB Surface Dust Static Electricity Cleaner Equipment



Machine introduction



This machine is a automatic PCB cleaning machine in the SMT production line, it used for clean the dust, static, and other dirties on the PCB surface. The machine used between the PCB loader and screen printer, also used before the conformal coating equipment. It's a new development and also a trend for the SMT production line, because it clean the PCB before the welding, so the defects during and after the welding will be eliminated in advance.



Features



1, The whole machine is made of stainless steel.

2, PLC program control.

3, Two pcs Keyence brand ion wind bar(ionizer), two pcs sticker roller, one pc adhesive roller combined for the whole cleaning process.

4, Ionizer use for clean the electric static on the PCB.

5, Adhesive roller and sticker roller work together clean the dust.

6, In-line cleaning, upstream machine is the PCB loader, down stream machine is the screen printer.

7, Draw-out design for easy changing of adhesive rollers and maintenance.

8, Standard machine is the single side PCB clean, double side cleaning process is optional.

9, Manual adjust the PCB width, automatic adjustment is available based on customer's request.

9, SMEMA signal compatible.



Specification



Model HS-330BC HS-460BC
PCB dimension (50*50)~(460*330) (50*50)~(530*460)
Machine dimension 555*900*1350 555*1030*1350
Weight 90kg 110kg



PCB thickness 0.5~3.2mm
Power supply AC100~230V,single phase,300A
Air supply 0.4~0.6Mpa
ESD brush Top 1 pc
Dust remove sticker roller top 2 pc
Adhesive roller Top 1 pc
Vacuum device 1 pc
Ion wind bar brand(ionizer) 2 pcs, best quality Keyence brand from Japan
If with dust collector Yes
Conveyor rail adjustment Crank wheel
Fixed rail Front fixed
Transport speed 0~9m/min,adjustable
Transport height standard 900±20mm
Direction L to R, or R to L,optional
Cycle time Around 8s
Signal Smema



Working drawing



PCB Surface Dust Static Electricity Cleaner Equipment ESD Brush 1 year Warranty 0







PCB Surface Dust Static Electricity Cleaner Equipment ESD Brush 1 year Warranty 1



PCB Surface Dust Static Electricity Cleaner Equipment ESD Brush 1 year Warranty 2
