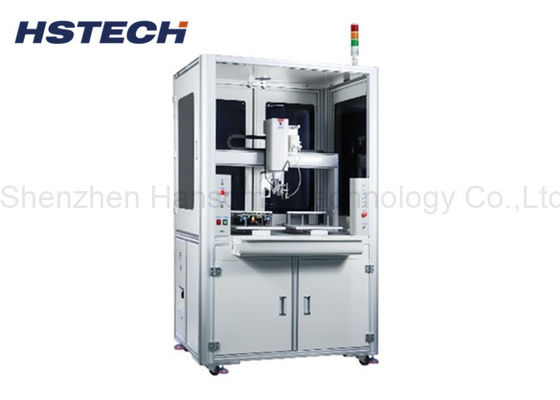

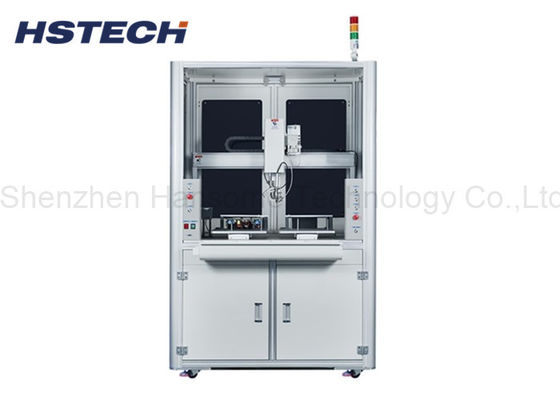

Floor Standing Robotic Soldering Machine Linear Guide Solder Pen Iron Tin Metal Structure Floor Standing Robotic Soldering Machine Linear Guide Solder Pen Iron Tin Metal Structure

Large Image :  Floor Standing Robotic Soldering Machine Linear Guide Solder Pen Iron Tin Metal Structure

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-FS5331R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month

Floor Standing Robotic Soldering Machine Linear Guide Solder Pen Iron Tin Metal Structure

Description
Product Name: Floor-standing Automatic Soldering Robot Machine Body: Metal Structure
Iron Tin: Single Platform: Double Y Working Platform
Linear Guide: Hiwin Usage: Pcb Soldeing,Welding,Circuit Board Soldering
High Light:

auto soldering machine

,

automated soldering equipment

Linear Guide Solder Pen Iron Tin Floor Standing Robotic Soldering Machine



Introduction



This model automatic soldering machine is the floor standing model soldering robot, different from the desktop soldering machine, it's a more convenient and flexible soldering robot. This machine adopts the 5 axis working system, with double soldering platform, single soldering iron/tip

morving range 500x300x300x100mm. The machine suitable for many kinds of PCBA welding, automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.



Features



1, Durable metal structure machine body, floor standing model, double platform operation.

2, 5 Axis working, with R rotation axis.

3, 500*300*300mm traveling distance, traveling range can be customized under customer's requirement.

4, Single soldering iron the moving range has many options depends on the product dimension, also can customized to double or tripple double soldering irons.

5, Support many welding method, point welding, drag welding,and other functions.

6, Teach pandent programing, manual setting all the welding points, also support CAD drawing import.

7, Using high quality Taiwan Hiwin brand Linear Guide, ensure the moving precision.

8, The machine adopts Stepper motor and timing belt control.



Specification



Model HS-S5331R HS-S6331R
Voltage AC110V/220V,50/60Hz
X/Y1/Y2/Z working range 500*300*300*100mm 600*300*300*100mm
R axis 360degree
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 65kg 70kg
Machine dimension

715*585*800mm

815*685*800mm





Main machine configuration



1, Double soldering Iron, double Y working platform

2, Handheld teach pendant programmer

3, Heating controller

4, Broken tin controller

5, Solder pen assembly

6, Welding tip

7, Tin out components

8, Cleaning box





Floor Standing Robotic Soldering Machine Linear Guide Solder Pen Iron Tin Metal Structure 0Floor Standing Robotic Soldering Machine Linear Guide Solder Pen Iron Tin Metal Structure 1



Floor Standing Robotic Soldering Machine Linear Guide Solder Pen Iron Tin Metal Structure 2
