| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-T350 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 145 usd/pc |
| Packaging Details: | Carton package |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs per month |
| Product Name: | PCB Storage Turnover Car | Dimension: | 850*540*1260mm |
|---|---|---|---|
| Type: | Anti-static | Resistance: | 106~109Ω |
| Moving: | 4 Wheels,360degree Moving | Storage Capacity: | Max 300pcs |
| Condition: | New | Warranty: | 1 Year |
| High Light: | smt production line equipment,pcb loader and unloader |
||

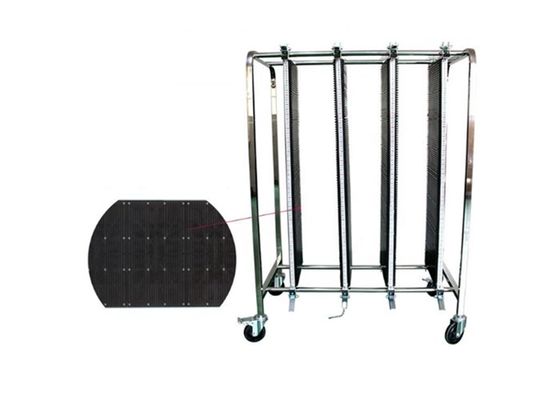

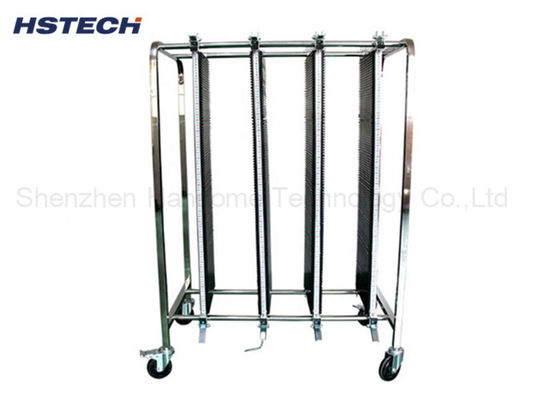

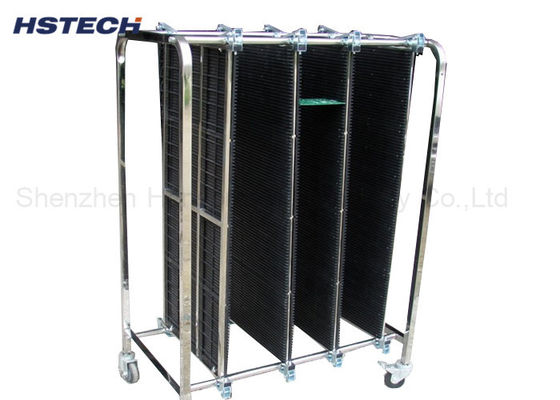

ESD 350mm 460mm Width Options Store 300pcs PCB Handling Storage Trolley
Introduction
Anti-static turnover trolley is also called PCB board turnover cart, transfer cart, storage truck, etc.
It's widely used in SMT processing, machinery, automotive, lighting industry, electronics and other production enterprises. It's easy to store, convenient for PCB board turnover, neatly stacked, and easy to manage the PCBs.The turnonver made of anti-static materials and stable stainless steel structure, equipped with 4pcs 360degree rotation wheels, very convenient to transportation, transfer, storage, it's parts of smart materials management in the SMT production factories.
Specification
| Model | HS-T350 |
| Overal size | 850*540*1260mm, |
| Suitable PCB size | max width 350mm,or optional 460mm |
| Standard layer | 3 layers |
| PCB storage capacity | Standard max store 300pcs |
| Side Plate Material | PP compound with conductive fiber |
| Side Plate Type | Injection mold |
| Trolley frame rack materia | Stainless steel |
| Trolley frame rack | quare type |
| Width adjust method | Manual/screw adjusment |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 106Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 30kg |
Features
1, Non-toxic, odorless, moisture-proof, corrosion-resistant, flexible, durable, adjustable, and gorgeous appearance.
2, The PCB trolley max can load 100kgs, also available for higher requirement depends on customer.
3, Anti-static surface resistance of 10 to the power of 6 to 10 of the 9th power,surface conductive resistance of 10 below the power of 4 to 10 to the 6th power.
4, Each layer has marked the number, easy management.
5, Made of all stainless steel, and the accessories are complete and diversified, and the production capacity is strong. The frame size and the number of rail slots can be customized according to customer requirements.
6, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.
7, Standard max can store 300pcs, customized is available.
8, The whole car can be moved, the wheels are anti-static, and four wheels (two with brakes).
9, Easy to install and disassembly, convenient for replacement and maintenance.
Application
This anti-static PCB turnover car is widely used in SMT processing, machinery, automotive, home appliances, light industry, electronics and other production enterprises. It can resist acid and alkali, oil, dirt, non-toxic and tasteless. It can be used to store PCB board, easy to clean, and convenient for PCB board turnover. Stacked neatly for easy management. Its reasonable design and excellent quality are suitable for transportation, distribution, storage, distribution and processing in SMT factory logistics.
