| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-DS330L |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package,with foam |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Destacker | Other Name: | Bare Board Loader |
|---|---|---|---|
| Power Supply: | AC110V/220V,single Phase,max 150A | PLC: | PANASONIC |
| Height Adjustment: | Feet Cup | Warranty: | 1 Year |

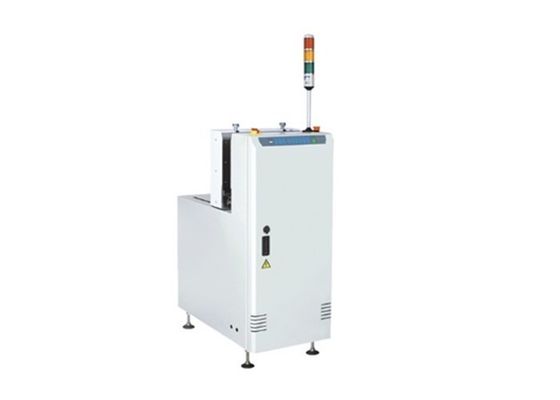

Panasonic PLC control Smart Button Control By-Pass Function PCB Destacker
Application
Used for loading bare PCB to smt line after received down-stream machine signal.
Features
1.PLC program control.
2.Aluminium structure, heavy bottom design to prevent shift.
3.Pass-through mode provided.
4.Only taken 10 seconds to change product line.
5.User friendly ‘soft touch‘ LED control panel,or button.
6.Uninterrupted Loading.
7.ESD transporting belt.
8.Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.
9.SMEMA compatible.
Specification
| Function |
Used for loading bare PCB to smt line
after received down-stream machine signal.
|
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| PCB thickness | 0.8~4.0mm |
| PCB components height | ±35mm |
| PCB feeding time | Approx. 10 seconds or Specify |
| Board weight | ≤3KG |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 0.6Mpa |
| Air consumption | <20L/min |
| Signal | SMEMA |
| Model | HS-DS350S | HS-DS530XL |
| Efficient PCB length | 50~350mm | 50~530mm |
| Transport PCB width | 50~350mm | 50~500mm |
| PCB thickness | Min 0.6mm | Min1.0 |
| Machine dimension | 500*770*1200mm | 600*920*1200mm |
| Weight | 200kg | 230kg |
